نام محصول:
سوئیچ مغناطیسی

نام انگلیسی:
Magnetic switch SW-21

برند:
China Shenzhen Jiwei Automations Ltd.

مشخصات:

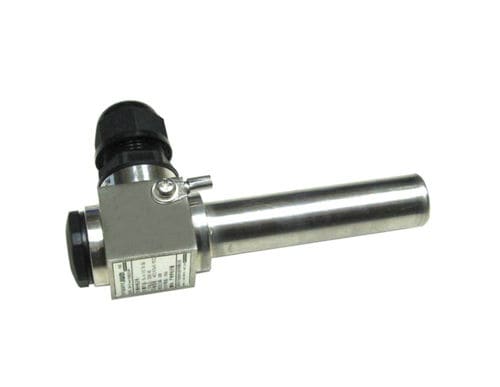

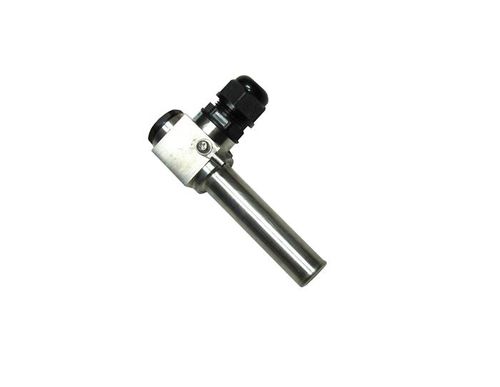

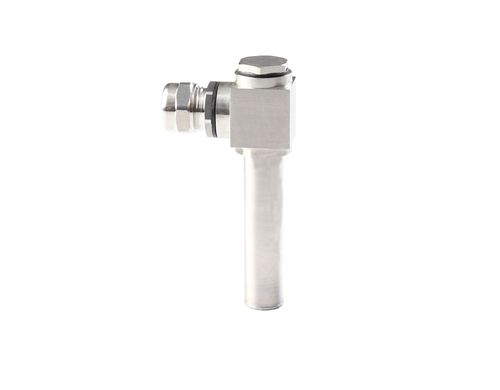

Compact and lightweight are the most prominent features of SW-21 Compact Magnetic Switch (with 35mm in width and 120mm in length). SW-21 has been approved for both Explosion-proof Certifications (Flameproof Enclosure: Ex d IIC T6 Gb and Intrinsic safety: Ex ia IIC T6 Ga). It is designed with quality high power reed switch. Jiwei holds a utility patent (NO. 201821348285.8) on SW-21.

Benefits:

●　Skillful configuration, compact and lightweight with delicate appearance (35mm in width and 120mm in length).

●　Imported high quality and high-power reed switch as core component with longer service life.

●　Chamber is made of 304 stainless steel to provide corrosion resistance and durability.

●　Qualified with SIL2 / SIL3 Functional Safety Assessment, as well as certified for both Intrinsic Safety (Ex ia IIC T6 Ga) and Flameproof Enclosure (Ex d IIC T6 Gb) explosion protection.

●　With high Ingress Protection rating IP66/67.

توضیحات:
Type
reed

Protection level
explosion-proof, IP67, IP66, flameproof

Other characteristics
power, magnetic, compact

Primary current
1 A, 1.5 A, 2 A, 2.5 A

Voltage
24 V, 220 V
