نام محصول:
سوئیچ لمسی
نام انگلیسی:

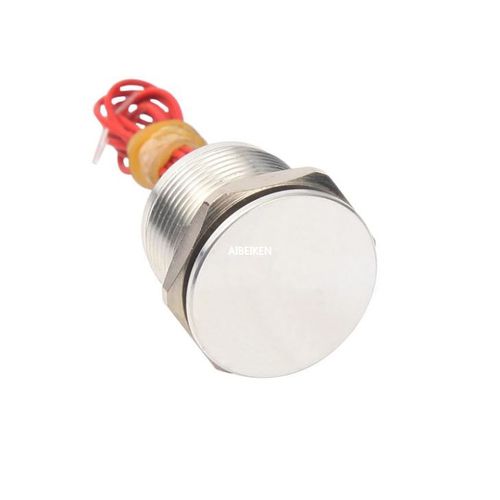

Touch switch PS19A-P2NOF-A
برند:
YUEQING AIBEIKEN ELECTRIC CO., LTD.
مشخصات:
Quick Details
Place of Origin:Zhejiang. China (Mainland)
Brand Name:Aibeiken
Model Number:PS19A-P2NOF-A
Protection Level:IP68
Max. Current:200mA
Max. Voltage:24V
Product Name:IP68 Waterproof latching switch
Operation Type:Momentary
Switch Combination:1NO
Head Type:Flat
Terminal type:Wired with 300mm long 24AWG
Enclosure Material:Aluminum Oxidation
Structure: Electronic
Sample Order:Acceptable
Cable length Customized:Acceptable
Mounting Hole Size:19mm
Notice:
1.The latching functions is with 3 wire leads only
2.12mm switch is with NO only,NOT for 3 wire leads
3.Standard Accessories supplied: 1 hex and 1 O-ring
4.Custom markings available
For options not listed, please contact us.
Common description for switch:
(1) Momentary function:
When you push the switch and then move your finger, the actuator will back to the original position.
(2) Latching function:
When you press the switch, it will be ON and keep locking until you press again, it will return to the original position.
توضیحات:
Type
touch
Number of poles
single-pole
Protection level
waterproof, IP68
Other characteristics
industrial, aluminum, momentary, actuator
Primary current
200 mA
Voltage
24 V
