نام محصول:
سوئیچ لمسی
نام انگلیسی:

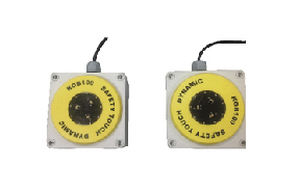

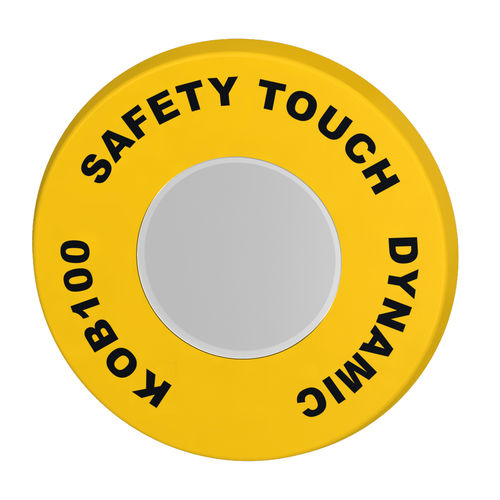

Touch switch KOB 101T
برند:
COMITRONIC – BTI
مشخصات:
Two-hand dual-technology touch control button for enhanced security
Dynamic detection of approaching hand
Fraud reduction system and MSD reduction
Capacitive and optical technology touch button
• Performance level with COM3C controller: PL = e
• Safety category with COM3C: IIIC (EN 574), 4 (ISO 13849-1)
• ‘Failsafe’ level with COM3C: SIL 3
• Time before dangerous failure: MTTFd = 100 years
• Activation distance: on touch (0 force = MSD reduction)
• Safety contacts: 1 x PNP NO/50mA OSSD and 1 x PNP NF/50mA OSSD
• Diagnostics: fraud, simultaneity, short-circuiting of contacts with multi-function illuminated ring
• Reset: automatic with two buttons correctly activated
• Attachment: Attachment: 51mm bore and 2 to 6 invisible D3 screws (not included)
• Mounting position: 1
• Material: TR90UV yellow
• Electrical connection: 6-way screwless push terminal 1.5mm²
• Water resistance: IP 67 with silicone seal on the trim
• Temperature: -25°C to +60°C
• Marking: screen printed + serial no. for traceability
توضیحات:
Type
touch, capacitive
Number of poles
single-pole
Protection level
SIL 3, IP67
Other characteristics
illuminated, self-reset, safety, optical, round
Primary current
50 mA
Operating temperature
Max.: 60 °C(140 °F)Min.: -25 °C(-13 °F)
