نام محصول:
سوئیچ لمسی
نام انگلیسی:

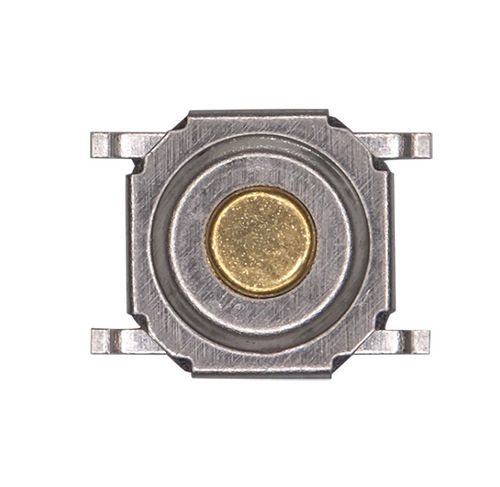

Tactile switch PTS526 series
برند:
C&K Components
مشخصات:
The PTS526 series tactile switch is a small 5.2 x 5.2 form factor in SMT version with 4 different heights and 3 available actuation forces, ideal for general usage applications. PTS526 tactile switch also includes ground pin options.
FEATURES AND BENEFITS
• 5.20 x 5.20 form factor
• IP40
• Actuator height 0.8, 1.5, 1.8 and 2.0 mm
TYPICAL APPLICATIONS
• General usage application
SPECIFICATIONS
Dielectric Strength:
> 250 Vrms
Insulation Resistance:
> 100 megohms
Contact Resistance:
< 100 milliohms
Solderability:
Lead free reflow soldering process according with IEC61760-1
Electrical Life:
100 000; 200 000; 500 000; 1000 000
توضیحات:
Type
tactile
Number of poles
SPST
Protection level
IP40
Mounting
SMD
Other characteristics
for automotive applications, with silver contacts, for general purposes, actuator, for medical devices
Primary current
50 mA
Voltage
12 V
Operating temperature
Max.: 85 °C(185 °F)Min.: -40 °C(-40 °F)
