نام محصول:
سوئیچ قفل کلید
نام انگلیسی:
Key lock switch K12S series
برند:
C&K Components
مشخصات:

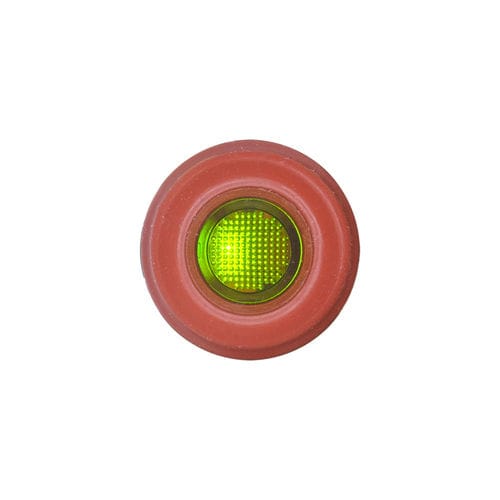

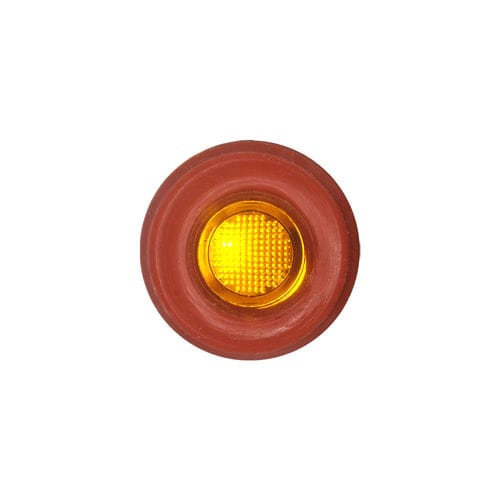

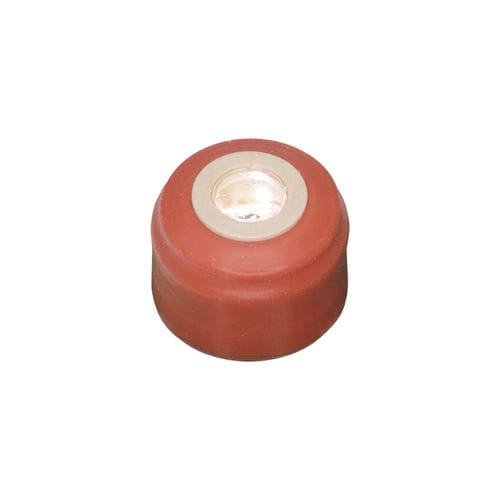

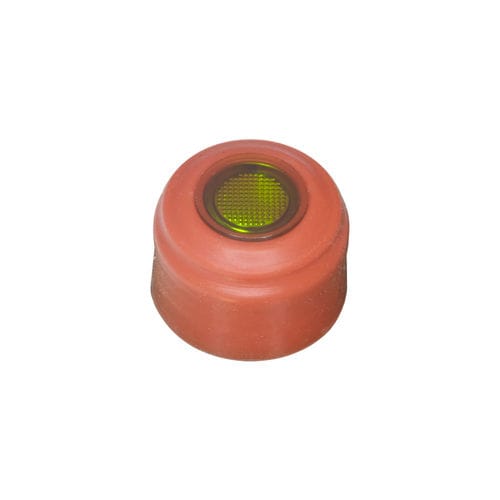

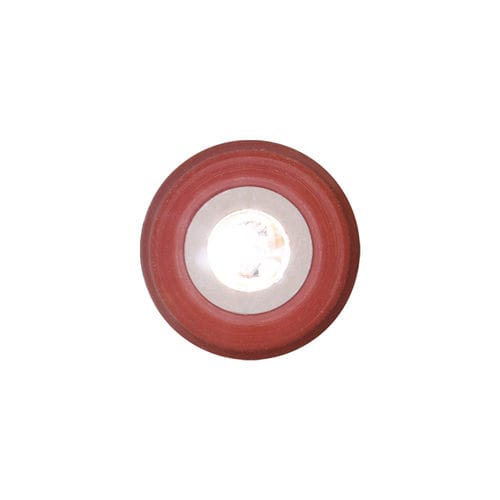

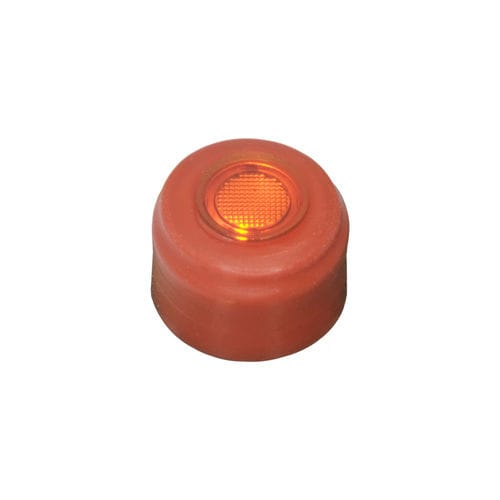

The K12S High Performance SMT from C&K is an illuminated keyswitch that provides an excellent tactile feel for the user. It can be IP40 or IP67 sealed, making it ready for use in any industrial, automotive or medical environment – and it complies with all RoHS requirements. The K12S is known for its reliability, is available in DPST or detect versions and is compatible with an SMT lead-free soldering process.
FEATURES AND BENEFITS
• Harsh environment applications – IP67
• Excellent tactile feel
• Compatible with SMT lead free soldering process
TYPICAL APPLICATIONS
• Automotive, Motorcycles
• Off-road transportation
• Industrial electronics
SPECIFICATIONS
Electrical Life:
Between 200,000 and 1,000,000 cycles
Contact Resistance:
1,000 megohms
Dielectric Strength:
> 300 Vrms
Solderability:
Lead free soldering compatible
توضیحات:
Type
key lock, tactile
Number of poles
DPST
Protection level
IP67, IP40
Other characteristics
illuminated, industrial, sealed
Primary current
100 mA
Operating temperature
Min.: -40 °C(-40 °F)Max.: 85 °C(185 °F)
