نام محصول:
سوئیچ قفل کلید
نام انگلیسی:
Key lock switch D6 series
برند:
C&K Components
مشخصات:
K12PLRD15NLV352;K12PBK15N;K12C15N;K12PLGN15NLV306;K12PLRD1.55NLV352;K12C 1 2.5N;K12GOBK1.53.5/7N;K12GOBK1.56/12N;K12P BK 1.5 5N;K12P BK 2 2.5N;K12PBK1.51.5N0D;K12PBK1.51.5N0D1R;K12PBK1.53.5N;K12PBK1.59N;K12PBK12.5N;K12PBK13.5N;K12PBK13.5N1R

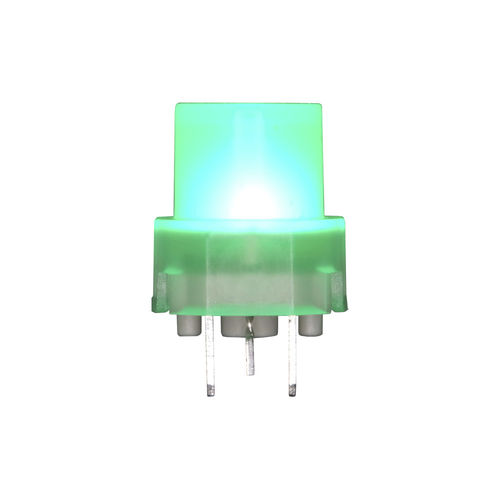

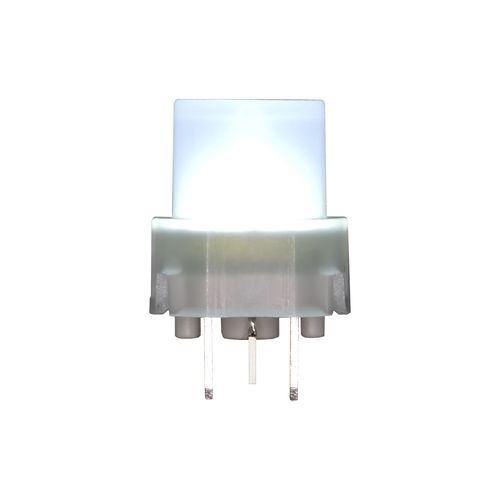

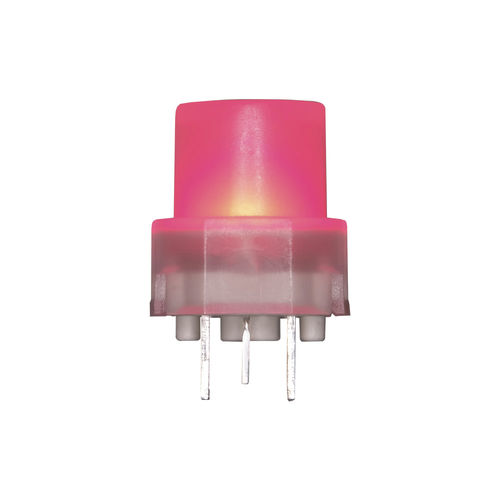

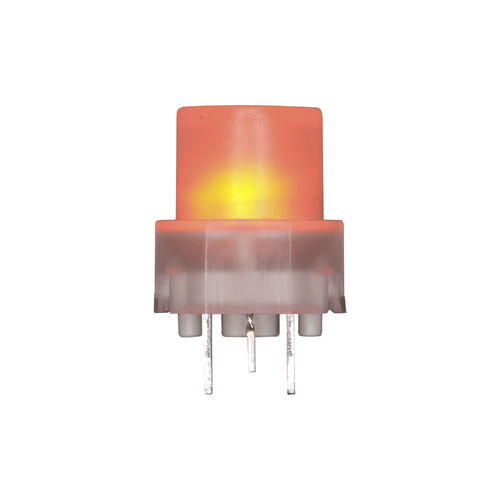

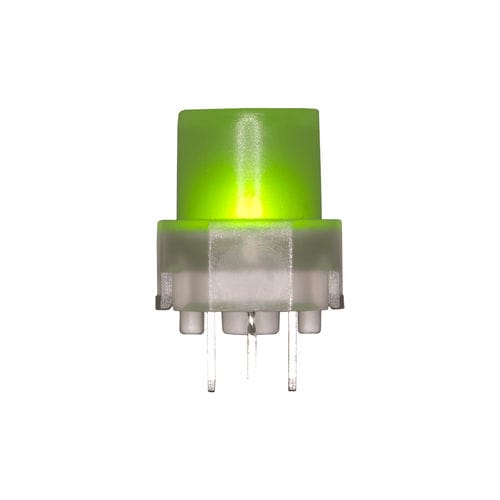

The D6 SPST Momentary keyswitch by C&K is often used in appliances, electronic games, video applications and industrial controls, due to its ability to withstand high temperatures. The D6 is built to enable easy X, Y coding on a single side PCB, is RoHS compliant and can be ordered in a variety of colors and styles, making it easy to match this switch to your product design.
FEATURES AND BENEFITS
• Excellent tactile feel
• Easy X, Y coding on single side PCB
• High temperature
TYPICAL APPLICATIONS
• Keyboard
• Consumer
• Industrial
SPECIFICATIONS
Contact Rating:
100mA (10mA for illuminated version)
Electrical Life:
Up to 250,000 cycles
Contact Resistance:
100 megohms
Dielectric Strength:
250 Vrms
Operating Temperature:
-20°C to 85°C (-20°C to 60°C for illuminated version)
Solderability:
Wave soldering, compatible with lead free soldering profile, Hand soldering, 350°C for 3 seconds
توضیحات:
Type
key lock, tactile
Number of poles
SPST
Other characteristics
illuminated, industrial, PCB, momentary
Primary current
100 mA
Operating temperature
Min.: -20 °C(-4 °F)Max.: 85 °C(185 °F)
