نام محصول:
سوئیچ عایق گاز SF6
نام انگلیسی:
SF6 gas-insulated switchgear ZF12B -72.5/126/145 (L)
برند:
Henan ping high electric co., LTD.
مشخصات:

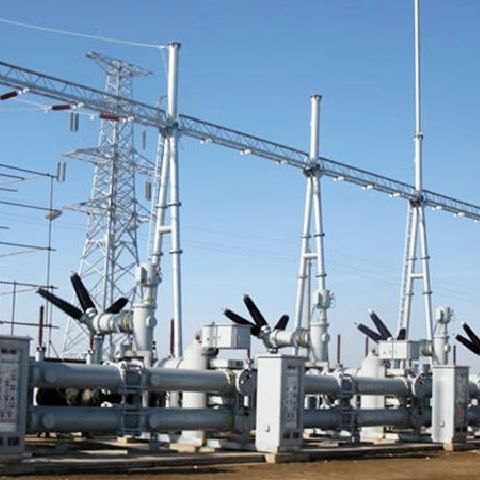

Gas Insulated Switchgear (GIS) is 3-phase AC high voltage switchgear which is used for the control, measurement, protection and switching of transmission lines. Since 1984, more than 5000 bays have been in service, some exported to Thailand, Equatorial Guinea and other countries.
ZF12B -72.5/126/145 (L) GIS contains major substation equipments, such as circuit breaker, disconnector, earthing switch, voltage transformer, current transformer and surge arrester. All components are three-phase in one closure. In ZF12B, the disconnector and earthing switch combined into 3-working-position type DS/ES to optimize the equipment structure and make it more compact.
1. ZF12B series are equipped with 3-working-position type DS/ES, which has the advantages of compactness, flexible configuration, physically mechanical interlock and high reliability.
2. The mechanism is oil/gas free, simple construction, easy maintenance and reliable operation.
3. The enclosure is made of aluminum alloy to ensure light weight, low temperature-rise and strong anti-corrosion..
4. Double sealing systems are adopted to guarantee high reliability in gas tightness and the annual gas leakage rate is leaa than 0.5%.
5. Excellent insulating, conducting and current carrying performances.
توضیحات:
Electrical characteristics
high-voltage, AC, three-phase
Configuration
compact, SF6 gas-insulated
Applications
for electrical networks
Other characteristics
floor-mounted, exterior
Primary current
2,000 A, 3,150 A
VAC
72.5 kV, 126 kV, 145 kV
