نام محصول:
سوئیچ عایق گاز SF6
نام انگلیسی:
SF6 gas-insulated switchgear 15 – 27 kV, 600 A
برند:
ENTEC ELECTRIC & ELECTRONIC CO.,LTD
مشخصات:

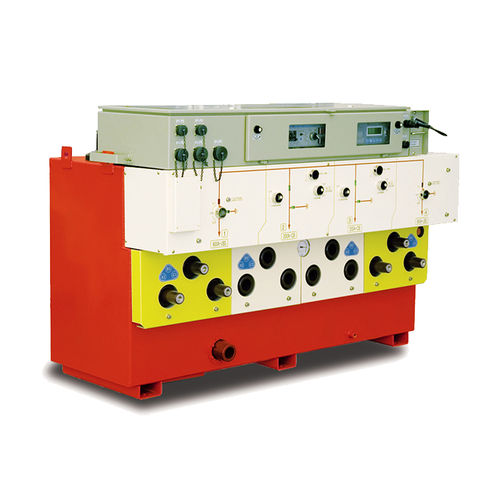

Entec’s SF6 Gas Pad Mounted Switchgear is designed for the application in underground lines for voltage classes up to 15kV and 27kV, with the combination of Circuit Breaker(CB) and Load Break Switch(SW).
Each Circuit Breaker(CB) and Load Break Switch(SW) are easy to operate manually and three-position switch(Open/Close/Earth) is available. It also features mimic diagram and indicators that can provide positions of CB and SW to ensure customer’s safety.

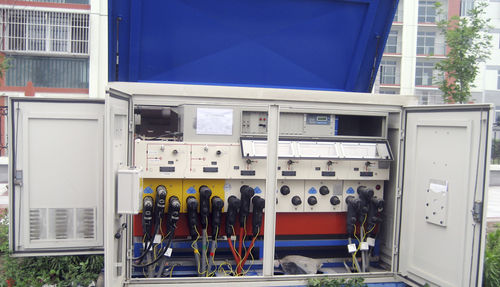

By considering traditional air-insulated Switchgear, the size of SF6 Gas Pad Mounted Switchgear is significantly compact. It also allows pad-mounted style enclosure for outdoor installation.
Two types of microprocessor-based controls can be applied for the automatic operation: ETR102/104, which is a dual protection relay for metering and monitoring, and ETCCU104, which has built in RTU with communication, metering, monitoring, and recording functions.
The switchgear has been fully type tested by accredited laboratories such as KEMA, CESI or KERI according to the international standard.
توضیحات:
Configuration
SF6 gas-insulated, compact
Applications
power distribution
Other characteristics
underground
Primary current
630 A
VAC
15 kV, 27 kV
