نام محصول:
سوئیچ ضدعفونی کننده
نام انگلیسی:
Vandal-proof switch L19S Series
برند:
YUEQING DANPU ELECTRIC ( LANGIR ) CO.,LTD.
مشخصات:

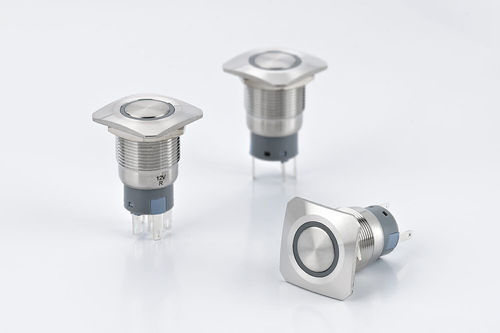

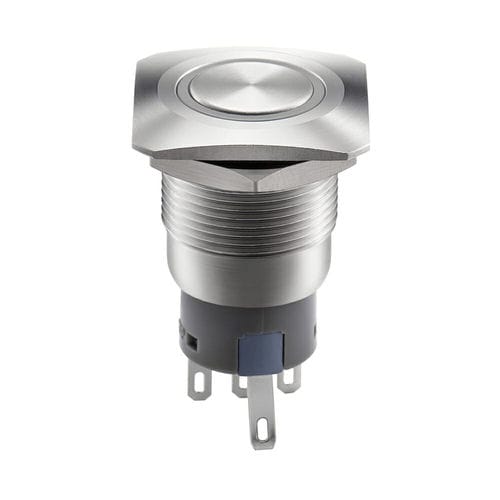

The Square Bezel Anti Vandal Switch with vandal-proof features. It provides a unique aesthetic feature of a 25mm square bezel over the standard round bezel.
The panel cutout size is 19mm and 22mm in diameter. It provides IP65 rating for dust and moisture protection. This switch offers multiple options such as ring illumination, single-pole or double-pole circuits, stainless steel housing material, and many LED illumination options, including RGB.
The Square Bezel Anti Vandal Switch is available with either a momentary or a maintained (latching) function. It can also be supplied with a laser etched power symbol. You can also add wire leads 300mm in length.
Square bezel anti-vandal switch
• RGB LED illumination option

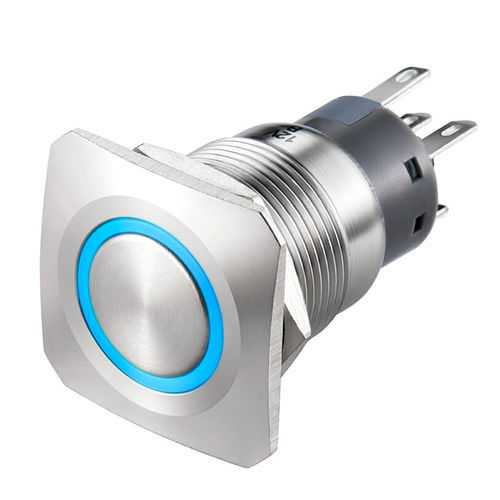

• Dot, ring or symbol illumination available
• IP65 rated for dust and moisture protection
• Multiple function options
• Soldered wire leads (300mm long) optional
Specifications
• Mechanical Life: 1,000,000 Cycles
• Electrical Life: 50,000 Cycles
• Contact Resistance: 50mΩ Max.
• Insulation Resistance: 1000 MΩ Min.
• Dielectric Strength: 2,000VAC
• Travel: 1.50mm
• Actuation Force: 4N
• Panel Thickness: 1-11mm
• Mounting Nut Torque: 5-14Nm
توضیحات:
Type
touch
Number of poles
SPDT, SPST, DPDT
Protection level
vandal-proof, waterproof, IP65, rugged, IEC, rugged, standard, rugged, robust, IK 10, weatherproof, for hazardous areas
Mounting
panel mount, flush-mount, wall-mount, built-in
Other characteristics
door, AC, on/off, illuminated, panel-mount, control, industrial, precision, anodized (red), DC, with indicator light, load, momentary, self-reset, ring, with housing, power, custom, for vehicles, flush-mounted, standard, custom, safety, mechanical, latching, lighting, low-voltage, with silver contacts, LED, stainless steel, 19 mm, flush-mount, sealed, board-mount, activation, non-illuminated, aluminum, for general purposes, anodized (green), maintained, flat, manual
Primary current
5 A
Voltage
250 V
Diameter / length
19 mm, 22 mm(0.7 in, 0.9 in)
Operating temperature
Max.: 55 °C(131 °F)Min.: -20 °C(-4 °F)
Width
25 mm(1 in)
Height
36 mm, 36.9 mm(1.4 in, 1.5 in)
