نام محصول:
سوئیچ ضامن
نام انگلیسی:
Toggle switch T3 series
برند:
OTTO
مشخصات:

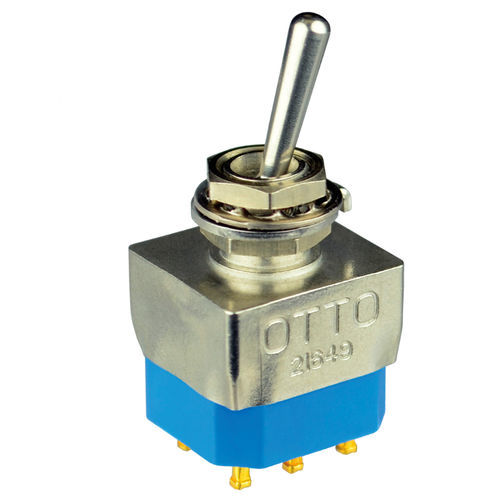

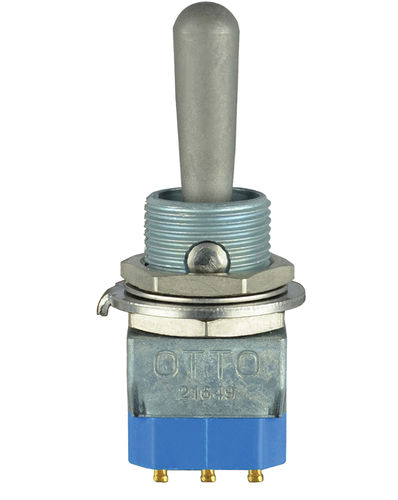

These miniature toggles are rugged, highly reliable switches offering positive detent action for safe switching operation, and feature the unique OTTO snap-action switch actuation in conjunction with a unique toggle actuator design.

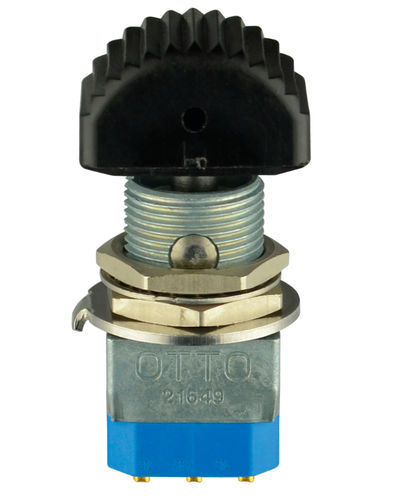

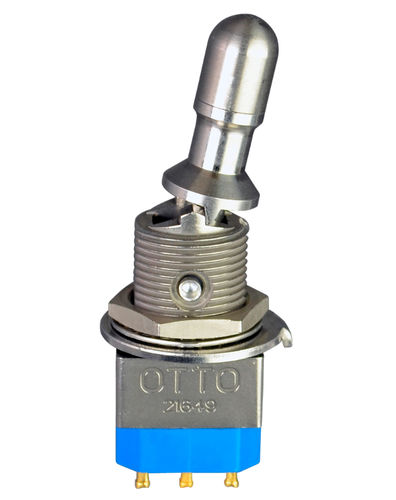

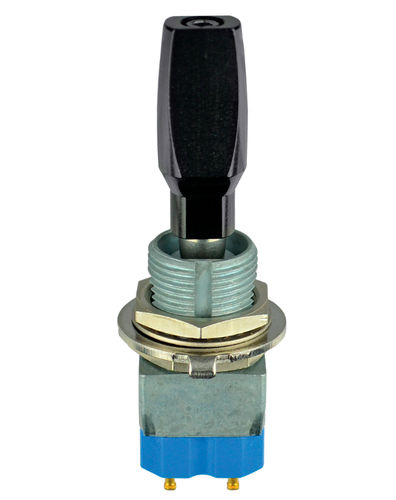

High contact pressure and superior wiping action of the OTTO design makes the T3 series an excellent choice for switching loads from logic level up to 5 amps. Choose sealed one or two pole circuitry, 15/32-32 sealed or 1/4-40 unsealed bushing construction, momentary and/or maintained operation. The 15/32-32 bushing model is also available with lever lockout toggle feature or thumb button actuators.
Molded-in terminals seal the contacts against moisture and solder flux wicking. The front-panel side of 15/32-32 bushing models are sealed against water and other liquids per MIL-DTL-83731. In addition to the single turret solder terminal specified in MIL-DTL-83731, we also offer two different lengths of pins for printed circuit soldering.
• Snap-action actuation
• Shorter behind panel depth
• Superior wiping action keeps contacts clean
• Positive tactile response prevents operating errors
• Weighs up to 25% less than competitive products
• More contact/terminal plating choices
• Highly reliable, simpler design, fewer parts
• Black matte finish available. Contact factory.
• RoHS compliant
توضیحات:
Type
toggle, lever
Number of poles
single-pole
Protection level
rugged, heavy-duty
Other characteristics
sealed, maintained, electromechanical, momentary, snap-action, miniature, actuator
Primary current
2 A, 5 A
Voltage
28 V
Operating temperature
Min.: -65 °C(-85 °F)Max.: 85 °C(185 °F)
