نام محصول:
سوئیچ ضامن

نام انگلیسی:

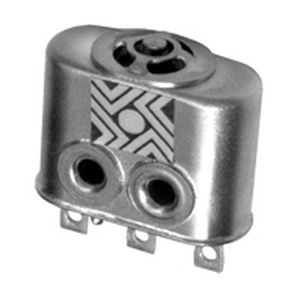

Toggle switch 6100 series

برند:
Haydon Kerk Pittman

مشخصات:
Haydon 6100 Series are environmentally sealed switches that are constructed for applications where high reliability and extreme environment temperature are demanded. This is suitable for commercial, military aircraft and space applications.

These switches functions for interlock indication, landing gear position, valve position and throttle control. Military uses include brake lights on military mobiles, gear shift indicator for tanks and other operations where resiliency and reliability are required. It incorporates an Elastomer seal on their switches that allows a high sensitivity and low operating pressure to render a maximum leak rate of 1×10 -6 atm cc/sec. The 6100 series comes with a push button, toggle, lead actuators, and roller assemblies upon request. HSI also offers custom assemblies to meet specific requirements of users.

توضیحات:
Type
toggle

Number of poles
single-pole

Protection level
waterproof

Other characteristics
high-accuracy, electromechanical

Primary current
3 A, 5 A

Voltage
28 V, 115 V
