نام محصول:
سوئیچ سه فاز
نام انگلیسی:
Three-phase switchgear
برند:
Eaton
مشخصات:

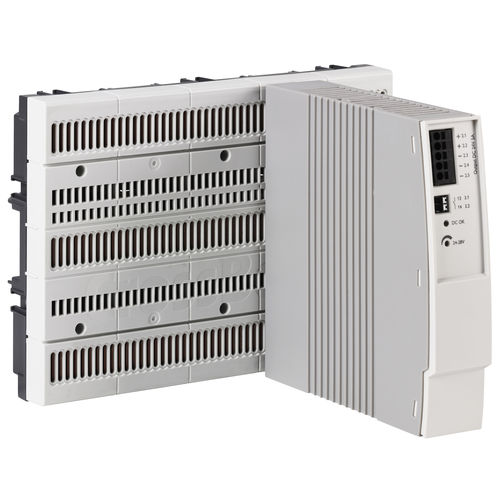

Eaton’s Moeller series MSFS feeder system for motor-starter combinations facilitates safe power distribution up to 125 A inside the control panel. Thanks to the modular, plug-in design, the integration of the MSFS into any machine or system is simple and intuitive. Installing the feeder system inside the control panel is fast, easy and safe, thanks to the out-of-the-box functionality.
• IP20 touch safe
• Two separate base modules, for a maximum of 4 (225 mm) or 8 (405 mm) motor starters
• Feed-in via push-lock technology
• IEC and UL certified

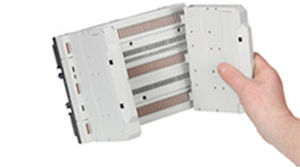

The plug-in technology enables direct contacting the moment the components are snapped on to the base module. No more tiresome wiring of the individual components, thereby saving valuable time. Your machines and systems are ready to be deployed right away.
The plug-in components can be mounted anywhere along the entire width of the base module. Machines and systems can thus be easily adapted to changing requirements without much effort.
توضیحات:
Electrical characteristics
low-voltage, AC, three-phase
Applications
circuit breaker, bus bar, for contactors, power distribution
Other characteristics
modular
Primary current
Min.: 0 AMax.: 125 A
