نام محصول:
سوئیچ روشن/خاموش
نام انگلیسی:
On/off switch TBD
برند:
Stern Engineering Ltd.
مشخصات:

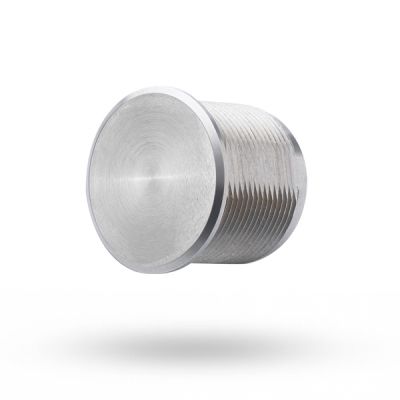

22 MM TOGGLE SWITCH, NON ILLUMINATED, FLAT HEAD ALUMINUM NATURAL – ON/OFF
Toggle Switch
One piece solid metal switch based on the piezoelectric principle, which is the ability of some materials (crystals and certain ceramics) to generate an electric pulse in response to applied mechanical stress.
* Vandal proof
* No moving parts
* >10 M operating cycles
* No power consumption
* Completely sealed – IP68/IP69K
* Weather proof
* Easy installation
Type: Piezo Momentary
Thread Cut out: 22 mm
IP rating: IP68/IP69K
Material: Aluminum
Type of head: Flat head
Ring Illumination: Non illuminated
Housing Colour: Natural
Cable: 20 cm open leads
Switching voltage: 48 V
Switching current: 1 A
Actuating force, typically: 3-5 N
Life cycle: >10 M
Operating temperature: -40 °C to +85 °C
Vibration resistance: 5-500 Hz/9.4 m
Shock resistance: 75 g
توضیحات:
Type
toggle, piezoelectric
Number of poles
single-pole
Protection level
vandal-proof, IP69K, IP68, weather-proof
Other characteristics
panel-mount, on/off, non-illuminated, mechanical, sealed, aluminum, momentary
Primary current
1 A
Voltage
48 V
Operating temperature
Max.: 85 °C(185 °F)Min.: -40 °C(-40 °F)
