سوئیچ راکر – Sensata Technologies – Rocker switch RS series

نام محصول:
سوئیچ راکر

نام انگلیسی:
Rocker switch RS series

برند:
Sensata Technologies

مشخصات:

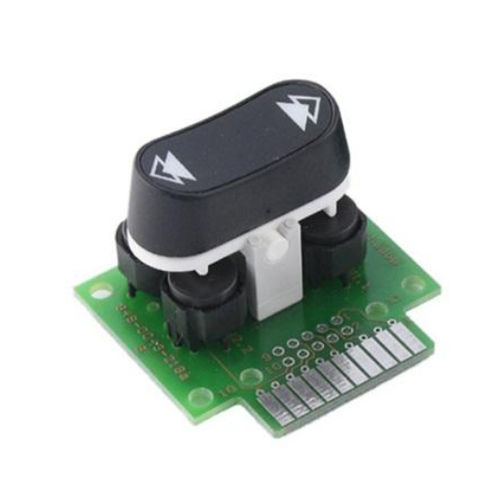

The Rocker Switch modules RS1 and RS2 are designed to be installed into front panels, multifunction grips or other switching units. The Quadrant Switch modules QS1 and QS2 are designed to be installed into front panels, multifunction grips or other switching units.

RS1

– This module is standard rocker switch with a single switch function in both directions.

RS2

– With the RS2 a double switch function is available in both directions.

QS1

– This module is a quad switch similar to a “mirror switch” made of four K12 switches, designed for 4 switching functions (e.g. for movements in four directions: up, down, left and right).

QS2

– This module is similar to the QS1 but has a double switch function and is made up with eight K12 switches allowing additional functions ineach direction.

توضیحات:
Type
tactile, rocker

Number of poles
single-pole

Protection level
IP65

Other characteristics
panel-mount, double

Diameter / length
43 mm, 58.9 mm(1.7 in, 2.3 in)

Operating temperature
Min.: -40 °C(-40 °F)Max.: 85 °C(185 °F)

Width
40.7 mm, 43 mm(1.6 in, 1.7 in)

Height
27.5 mm, 27.6 mm(1.1 in, 1.1 in)
