نام محصول:
سوئیچ خازنی
نام انگلیسی:

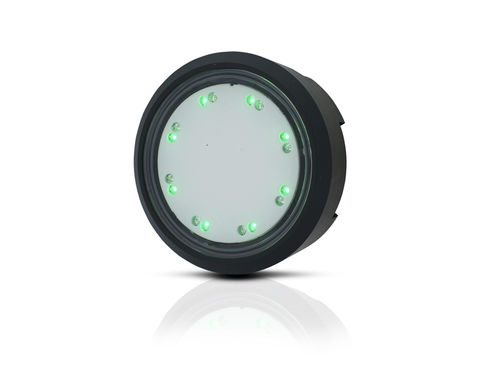

Capacitive switch CHT3 series
برند:
CAPTRON
مشخصات:
Description
Different shapes, installation depths and plug-in connections mean that the CHT3 series is suitable for a wide range of uses. Depending on the application, you can choose switches for flush installation, with fiber-glass-reinforced polycarbonate cover ring or with a protective collar to prevent accidental actuation or dirt for application areas in plant & mechanical engineering.
The CHT3 was designed according to the requirements of TSI-PRM. For people with limited mobility, SENSORswitches are available with Braille or raised pictograms at the colored cover ring.
CHT3 switches can be equipped in addition to the visual signal through 16 bright LEDs with an acoustic beeper. It´s field of application covers installation in buses and trains as well as for emergency call and information columns.
CAPTRON can provide individual advice to enable you to choose the perfect product from the CHT3 series for the required specifications and applications.
Contact us: CAPTRON service.
Important properties
•Touch Control
High ease of use, no mechanical pressure required.
•Feedback
Visual and acoustic signals through 16 LEDs and beeper.
•Shock-resistant
The sensor cannot be destroyed by lighter flames or severe blows.
•100 % water & oil-proof – IP69K
Sensor completely sealed in cast resin.
•Durable service life
More than 100 million operation cycles (transistor output).
•Accessibility
Braille and raised chevrons on coloured cover ring or sensor area.
•TSI-PRM certified (depends on model)
By directive 1300/2014.
توضیحات:
Type
sensitive, capacitive
Number of poles
multipole
Protection level
waterproof, vandal-proof, IP67, IP69K, heat-resistant, flame-retardant
Other characteristics
panel-mount, LED-illuminated, door, polycarbonate, plug-in, door opening, low-profile
Primary current
400 mA
Voltage
24 V
