نام محصول:
سوئیچ تک قطبی
نام انگلیسی:

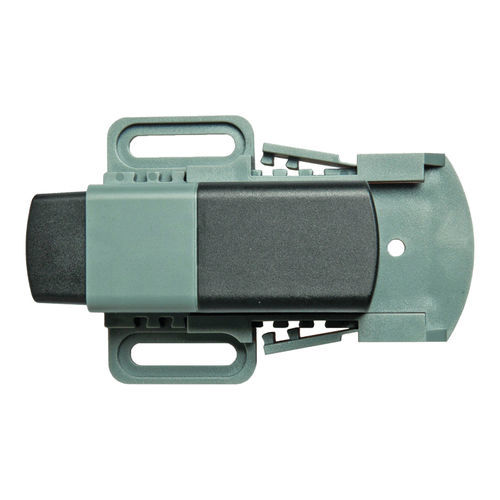

Single-pole switch DS 013
برند:
STEGO
مشخصات:
Door switch for monitoring the position of control cabinet doors and triggering additional actions. As required, this can switch on a lighting system (NC) when the cabinet doors are opened or activate ventilation when the doors are closed (NO), for example. The version with change-over contact (CO) allows it to be used as a contact maker and/or breaker.

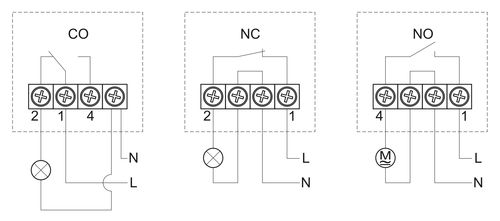

Three versions: NC, NO and CO
No tools required and freely positionable
Large mechanical range of settings
توضیحات:
Number of poles
single-pole
Protection level
IP20
Other characteristics
control, door, mechanical, lighting
Primary current
1.5 A, 8 A
Voltage
250 V

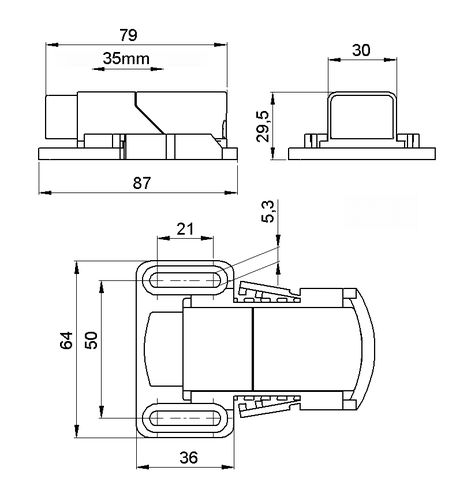

Diameter / length
87 mm(3.4 in)
Operating temperature
Max.: 85 °C(185 °F)Min.: -20 °C(-4 °F)
Height
30 mm(1.2 in)
