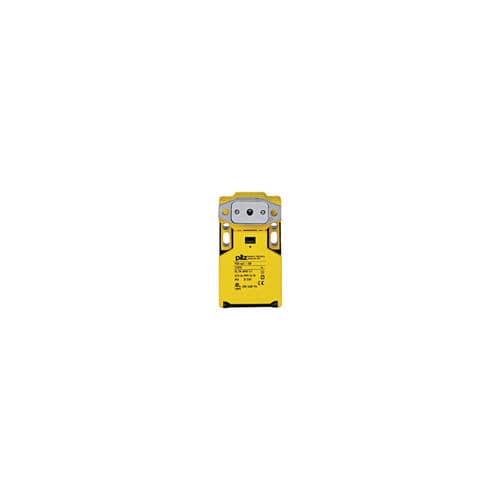

سوئیچ تک قطبی – PILZ – Single-pole switch PSEN me3 / 2AR

نام محصول:
سوئیچ تک قطبی

نام انگلیسی:
Single-pole switch PSEN me3 / 2AR

برند:
PILZ

مشخصات:
Mechanical safety switch, with radius actuator, contacts: 1 N/O, 1 N/C.

Technical data

Utilisation cat. AC15/DC13sta. – EN 60947-5-1

Environmental data

Protection type, housing –

Mechanical data

Connection terminal – Screw terminal

Terminal style – fixed

Net weight – 175 g

Gross weight – 238 g

Environment

RoHS directive – 2011/65/EU

2015/863/EU

RoHS conformity – yes

RoHS exceptions – yes

RoHS except.s acc. to direct. – 6a

6c

REACh compliance – contains min. 1 SVHC-substance

REACh included substances – Lead

ETU

%-part of the pollutant – > 0,1

CAS No. – 7439-92-1

96-45-7

WEEE classifikation (08/2018) – 5 devices (feed size < 50cm)

توضیحات:
Number of poles
single-pole

Other characteristics
mechanical, safety, actuator

Primary current
10 A

Voltage
240 V

Operating temperature
Max.: 80 °C(176 °F)Min.: -30 °C(-22 °F)

Width
52 mm(2 in)

Height
90 mm(3.5 in)
