نام محصول:
سوئیچ تک قطبی

نام انگلیسی:

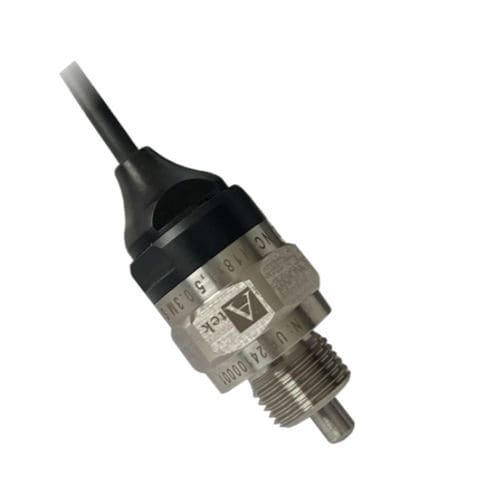

Single-pole switch APS 27

برند:
ATEK SENSOR TECHNOLOGIE

مشخصات:
Resistant to most oils, fuels, hydraulics, dust and solvents

Mechanical switch for 10mA – 5A at 9-32VDC

Vibration (5G) resistant

Designed to allow both vertical and angular movement

Standard NC, optional NO switch output

Industry standard AMP superseal connector

Oil, fuel, hydraulic and dust resistant; resistant to vibrations; commercial vehicles, industrial equipment, conveyor systems, etc. Status detection and output for many different situations that may occur in systems

General Features

Resistant to most oils, fuels, hydraulics, dust and solvents

Mechanical switch for 10mA – 5A at 12-24V/li>

Vibration (5G) resistant

Designed to allow both vertical and angular movement

Standard NC, optional NO switch output

Industry standard AMP superseal connector

IP69K protection class

Applications

Mechanical switches are used in commercial vehicles, industrial equipment, conveyor systems, etc. It is used to detect last positions and give output for many different situations that may occur in systems.

توضیحات:
Number of poles
single-pole

Protection level
IP69K

Other characteristics
industrial, mechanical

Primary current
Max.: 5,000 mAMin.: 10 mA

Voltage
Max.: 24 VMin.: 12 V

Operating temperature
Max.: 150 °C(302 °F)Min.: -40 °C(-40 °F)
