نام محصول:
سوئیچ ایمنی
نام انگلیسی:
Safety switch MS5
برند:
Mechan Controls
مشخصات:
Housing:
Red ABS, Resin Encapsulated
Contacts:
2NO + 1NC (with door open)
Connection Type:
Pre-Wired Cable, 6 cores
Operating Distance:
7mm ON / 20mm OFF

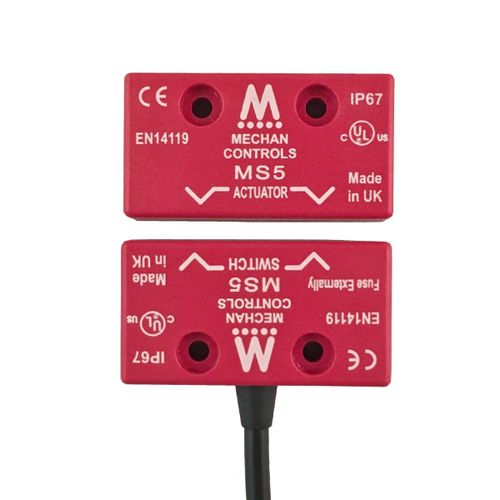

The MAGNASAFE MS5 are compact, non-contact safety switches designed for use with modern safety relays. Encapsulated into red ABS housings, the MS5 safety switches are easy to install and have a 7 – 10 mm switching distance, making them tolerant to misalignment and helping to ensure a long and trouble free operating life.
TECHNICAL SPECIFICATIONS
SAFETY OUTPUT – : UP TO 2 X NO
AUXILLIARY OUTPUT : UP TO 1 X NC
AUXILLIARY OUTPUT RATING : 15W / 10VA
CABLE / CONNECTOR – : PRE-WIRED
CABLE LENGTH : 3, 6 OR 10 METRE
CODING : TAMPER RESISTANT
INDICATION : 1 X VOLT FREE CONTACT
DIMENSIONS OF SWITCH (MM) : 52 X 28 X 14MM
DIMENSIONS OF ACTUATOR (MM) : 52 X 28 X 14MM
CONSTRUCTION : RED ABS, RESIN FILLED
MOUNTING : 4 X M4 SECURITY SCREWS
توضیحات:
Number of poles
multipole
Protection level
IP67, IP69K
Other characteristics
safety, contactless, magnetic, compact
Primary current
0.3 A
Voltage
24 V
Operating temperature
Max.: 55 °C(131 °F)Min.: -10 °C(14 °F)
