نام محصول:
سوئیچ ایمنی
نام انگلیسی:

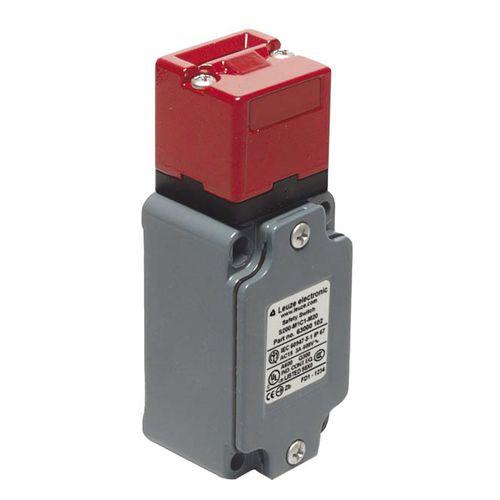

Safety switch S200-M1C1-M20
برند:
Leuze electronic GmbH + Co. KG
مشخصات:
Functions – Integration in control circuits up to category4 in accordance with EN ISO 13849-1
Mechanically coded interlock device of type 2 acc. to EN ISO 14119
SIL – 3, IEC 61508
SILCL – 3, IEC/EN 62061
Performance Level (PL) – Up to and including e, EN ISO 13849-1
Mission time – 20 years, EN ISO 13849-1
B10d – 2,000,000 number of cycles
Usage category at DC 13 – Ue / Ie: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A, EN 60947-5-1
Usage category at AC 15 – Ue / Ie: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A, EN 60947-5-1
Contact allocation – 1NC + 1NO
Contact opening – Force-fit
Short circuit protected – 500 V, 10 A, type aM, IEC 60269-1
Contact protection – Earthing
Rated insulation voltage – 500 V AC, 600 V DC
Conventional thermal current, max. – 10 A
Number of connections – 1 Piece(s)
Number of cable entries – 1 Piece(s)
Function – Contact connection
Type of connection – Terminal
Type of terminal – Screw terminal
No. of pins – 4 -pin
Connection cross sections – 1 x 0.34 mm² to 2 x 1.5 mm², wire
Design – Cubic
Dimension (W x H x L) – 40 mm x 38 mm x 109.5 mm
Housing material – Metal
Metal housing – ZAMAK
Electrical contact material – Silver alloy
Net weight – 294 g
Housing color – Gray
Red
Type of fastening – Through-hole mounting
Type of cable entry – M20 x 1.5
Switch type – Interlock device without guard interlocking, ISO 14119
Switching principle – Slow-action contact
Approach actuation directions – 1 x top
4 x side (90°)
Approach speed – 0 … 0.5 m/s
Mechanical life time – 1,000,000 actuation cycles, IEC 6047-5-1
Actuation frequency, max. – 3,600 per hour, IEC 6047-5-1
توضیحات:
Number of poles
single-pole
Protection level
IEC, IP67
Other characteristics
AC, mechanical, DC, with separate actuator, coded, without guard, safety, interlock, type 2, actuator
Primary current
10 A
Voltage
500 V, 600 V
Operating temperature
Max.: 80 °C(176 °F)Min.: -25 °C(-13 °F)
