نام محصول:
سوئیچ ایمنی
نام انگلیسی:

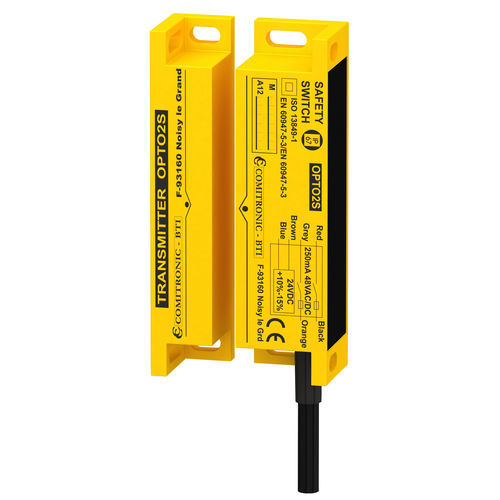

Safety switch OPTO2S
برند:
COMITRONIC – BTI
مشخصات:
OPTO2S – Miniature safety Switch
Position control for doors / casings on hazardous machinery
Contactless encoded electronic sensor with relay
Category 3 total safety management without an external controller
12V version for embedded applications
• Level of performance without an external controller: PL = c
• Level of performance with AWAX controller: up to PL = e
• Safety category without an external controller: 1
• Cycle before dangerous failure: B10d = 2,000,000 at 50mA
• Max. activation distance: 10 mm, 2 mm hysteresis
• Safety contacts: 2 x NO 250 mA/48V redundant
• Detection encoding: mono-code inviolable
• Indicator: LED indicates code recognition
• Reset: automatic
• Attachment: 4 tamper-proof M3 screws (optional ref: BH3)
• Mounting position: 2 (double wall brackets)
• Material: PA6
• Electrical Connection: 3, 6, 12m cable (UL2464 PVC)
• Water resistance: IP 68
• Temperature: -20°C to +60°C
• Marking: pad printing + serial no. for traceability
توضیحات:
Number of poles
single-pole
Protection level
vibration-resistant, IP68
Mounting
embedded
Other characteristics
LED, safety, coded safety, contactless, electromagnetic, stand-alone, miniature
Voltage
Min.: 12 VMax.: 24 V
