نام محصول:
سوئیچ ایمنی کدگذاری شده

نام انگلیسی:

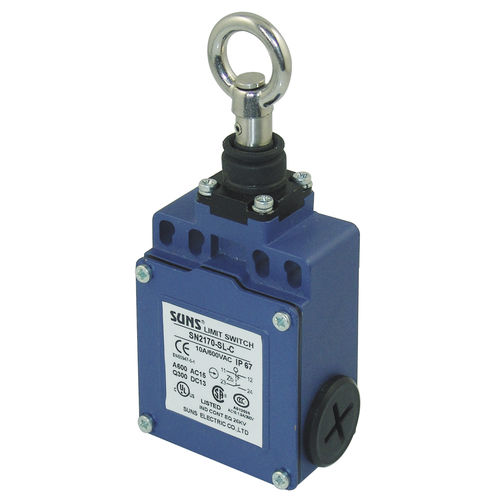

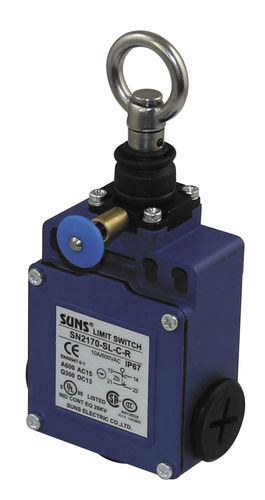

Coded safety switch SN2170

برند:
SUNS

مشخصات:
Features:
*General-purpose fiting size and triggering mode
*Compatible to EN418 required with emergency stop
*button on the surface cover
*the switch works in two direction:tripped when the wire
*is pulled or breaking.
*The switch can be with indicator light to show the state.
*Positive Opening of NC contacts
*Conform to EN60947-5-5,
*ISO13850, ISOTR 12100, IEC 60947-5-1, EN 418 Installation dimensions:

Specifications:
Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min
—————————————————————-
Insulation Resistance:　>100MΩ @ 500V DC
—————————————————————-
Contact Resistance: <25mW (initial value)
—————————————————————
Rated Current/Voltage:　Ith:10A 600V AC (EN60947-5-1)
—————————————————————
Electrical Rating:　 AC15 A600/ DC13 Q300
—————————————————————
Dielectric Strength:　1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
————————————————————-
Service Life:　　　 Mechanically 10,000,000, Electrically 500,000
——————————————————————————–
Operating Temperature:　-25~80℃(-13~176°F) without formation of ice
———————————————————–
Humidity: < 95%RH
———————————————————–
Degree of protection:　 IP67
