نام محصول:
سوئیچ اهرم
نام انگلیسی:

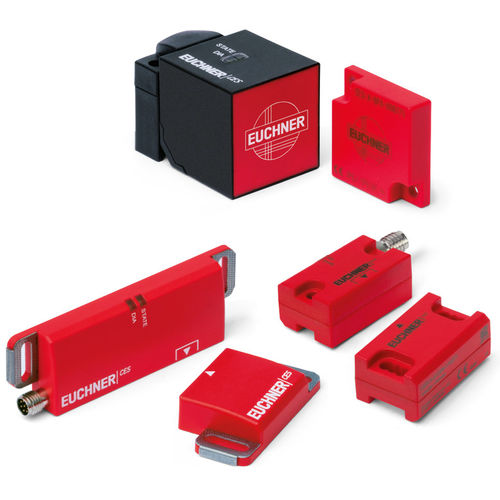

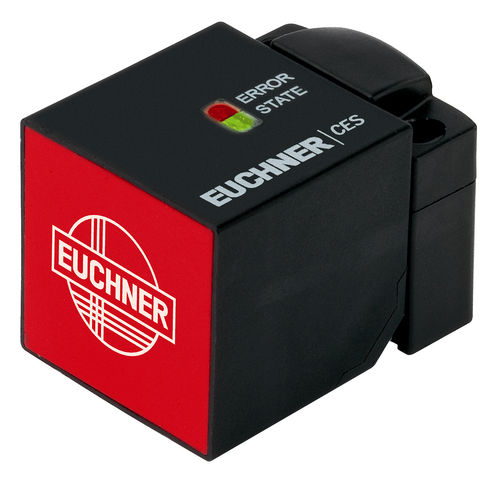

Lever switch CES-AP-C01-AH-SB-111145
برند:
EUCHNER GmbH + Co. KG
مشخصات:
• No series connection
• Short circuit monitoring
• 2 safety outputs (semiconductor outputs)
• Category 4 / PL e according to EN ISO 13849-1
• M12 plug connector 5-pin; pin 5 not used
• Unicode
Approach direction
Can be adjusted in 90° steps
Short circuit monitoring
The switch generates its own clock signal on the output lines OA/OB.
Pay attention to this aspect when connecting to control systems and relays.
Unicode evaluation
Each actuator is highly coded (unicode). The switch detects only taught-in actuators. Additional actuators can be taught-in. Only the last actuator taught-in is detected.
Category according to EN 13849-1
Due to two redundantly designed semiconductor outputs (safety outputs) with internal monitoring suitable for:
Category 4/PL e according to EN 13849-1
Important: To achieve the stated category in accordance with EN ISO 13849-1, both safety outputs (OA and OB) must be evaluated.
LED indicator
STATE
Status LED
DIA
Diagnostics LED
توضیحات:
Type
lever
Number of poles
single-pole
Protection level
IP67
Other characteristics
electromechanical, contactless, safety
Primary current
Min.: 0.25 AMax.: 8 A
Voltage
300 V
