نام محصول:
سوئیچ اهرم
نام انگلیسی:
Lever switch 351RHS series
برند:
ELOBAU
مشخصات:
•High reliability and long service life thanks to contactless reed technology
•Developed for harsh operating conditions, high protection class IP67 for electronics
Robust and space-saving design
•3 detent positions for direction control
•Switching signals optionally overlapping for the optional detection of line interruptions
•Integrated mounting bracket available for steering columns for diameters of 38 mm or 45mm
•Mechanical locking in centre position
•Available with or without push button
With or without detent.

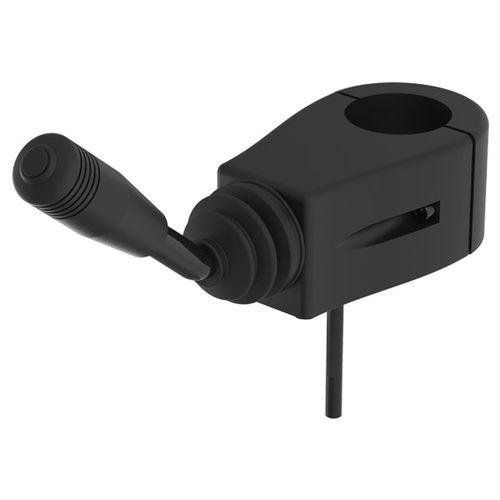

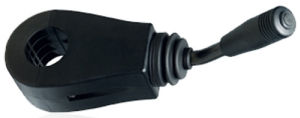

The Lever switch 351RHS, with integrated mounting bracket for standardised steering columns, is used for direction control. Optionally available with mini push buttons which can be used to operate the horn and other functions. The robust Lever switch 351RHS is used in agricultural vehicles, construction machinery and self-propelled machinery. Using proven technology, these steering column switches are robust and reliable even under tough working conditions.
توضیحات:
Type
lever, reed
Number of poles
single-pole
Protection level
robust, IP67
Other characteristics
control, for vehicles, electromechanical, contactless, mini
Primary current
Min.: 0 AMax.: 0.5 A
Voltage
Min.: 0 VMax.: 48 V
