نام محصول:
سوئیچ اسلاید
نام انگلیسی:
Slide switch MS series
برند:
NKK Switches
مشخصات:

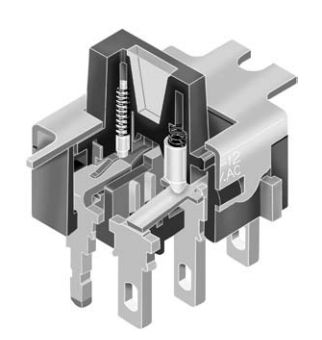

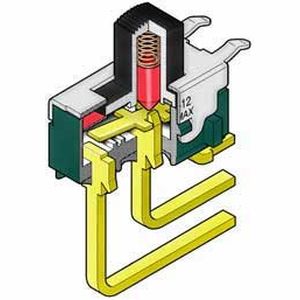

6A Power Level & 0.4VA Logic Level; Frame and PCB Mount, UL, CSA, cULusMiniature Slide SwitchesOver-center actuator block and plunger design gives crisp actuation, diminishes sparking, and increases operating life. Bright, LED illumination at actuator top (for illuminated models). Anti-jamming design protects contacts from damage caused by excessive downward force on the actuator. High internal barriers between poles, and insulating sheet between case and actuator block provide added protection to contacts. Specially composed silver alloy contacts for power applications, or gold contacts for logic-level applications, give high contact reliability. Prominent external insulating barriers increase insulation resistance and dielectric strength. Epoxy sealed terminals prevent entry of flux, solvents, and other contaminants. Clinching frame to case well above base and terminals provides 1500V dielectric strength. All models are certified by CSA and recognized by UL.
توضیحات:
Type
slide
Number of poles
single-pole
Other characteristics
electromechanical, miniature
Primary current
Max.: 6 AMin.: 3 A
Voltage
Max.: 250 VMin.: 125 V
