نام محصول:
سلول خورشیدی فتوولتائیک استاندارد
نام انگلیسی:
Standard photovoltaic solar cell MIH series
برند:
MH GoPower Co., Ltd.
مشخصات:
the only photovoltaic cell product line capable of delivering a wide

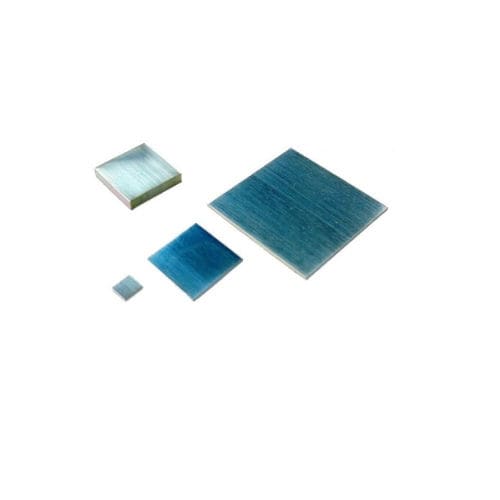

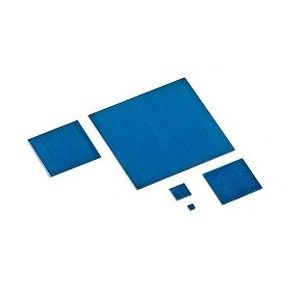

range of power and voltage outputs. Power output levels range from tens of milliwatts to hundreds of watts, while output voltage levels are possible from 4 volts to over 30 volts. MHGP’s MIH® VMJ PV Cell product line operates most efficiently with wavelengths in the range of 900nm to l,000nm, but can also operate effectively over a broader range from approximately 800nm to l,070nm. The 5S1010.4 is MHGP’s standard size VMJ PV cell of dimensions 10mm x 10mm x 0.4mm optimized for 9xxnm wavelengths. The 5S1010A9 cell has dimensions of 10mm x 10mm x 1.9mm and is optimized for high performance at 1064nm wavelength. These cells are suitable for
applications requiring high electrical output power densities. The performance of the MIH® VMJ PV cell will drop ~3% for every 10°C increase in temperature. Target applications include PV receivers for power over fiber applications as well as laser power beaming, including powering UAVs, aerospace applications, and remote ground based sensors. Features of target applications include need for remote power delivery, or high voltage isolation, or need to operate in high voltage or high EMI environments.
Key Features:
Si-based vertical multi-junction PV cell
High voltage density with low current
High temperature durability
Voltage and size customization
Optimal efficiency with 9xxnm lasers
High efficiency from 800nm to 1070nm
Applications:
UAV wireless charging
Remote sensor charging
Wireless remote power delivery
توضیحات:
Options
standard
Width
1 mm, 3 mm, 10 mm(0 in, 0.1 in, 0.4 in)
