نام محصول:
سلف فریت
نام انگلیسی:

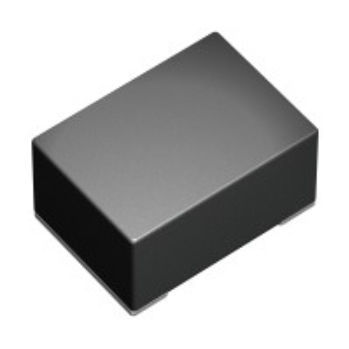

Ferrite inductor LSEUC2012HKT1R0M
برند:
Taiyo Yuden
مشخصات:
Status – Mass Production (Preferred)
Inductance – 1.0 uH ± 20 %
Case Size (EIA/JIS) – 0805/2012
DC Resistance (max) – 78 mΩ
DC Resistance (typ) – 72 mΩ
Operating Temp. Range – -40 to +125 ℃
(Including-self-generated heat)
Temperature characteristic
(Inductance change) – ± 15 %
Dimension L – 2.0 ±0.2 mm
Dimension W – 1.2 ±0.2 mm
Dimension T – Max 0.8 mm
Dimension e – 0.6 ±0.3 mm
Measuring Frequency – 1 MHz
RoHS Compliance (10 subst.) – Yes
REACH Compliance (235 subst.) – Yes
Soldering – Reflow
Standard Quantity – Taping Embossed 3000pcs
Use of metallic magnetic materials which has excellent DC bias characteristic
Low core loss
Low Rdc
Main Applications
Suitable for an anti-noise measure on the power supply
circuit of smartphone, tablet PC, various communication equipments and etc.
توضیحات:
Technology
wire-wound, ferrite, magnetic
Electrical characteristics
power, current, DC, frequency
Applications
for electronics, industrial, for switching power supplies, measuring
Primary current
Max.: 2.3 AMin.: 0 A
