نام محصول:
روان کننده هوای فشرده
نام انگلیسی:
Compressed air lubricator
برند:
مشخصات:

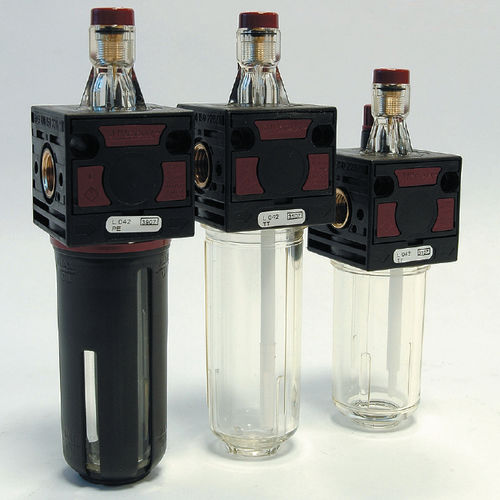

Lubricator
Proportional oil mist type.
* Constantly steady delivery.
* Suction ensured even with low flow rates.
* Sensitive lubricant flow adjustment.
* 360° drip display.
* Oil fill plug.
* Can be wall mounted using the relative holes.
* Bowl available in three configurations: transparent toughened polyamide (TT) or with outer bowl guard (PE) and short transparent version (TC).
* Bowl capacity: TT and PE version 42cc, TC version 32cc.
* Recommended oil viscosity ISO VG32.
* Maximum operating pressure: 16,0 Bar (1,60 MPa).
* Max. ambient temperature (at 10 bar) 50°C (122°F).
* Max. torque inserts G1/4” IN-OUT: 25 N·m.
* Reference flow rate (P=10 Bar – Δp=1 Bar): 2060 Nl/min.
* Weight: 0,095 Kg.
* Product complies with Directive 2002/95/CE (RoHS).
