نام محصول:
دیسک پارگی معکوس

نام انگلیسی:
Inverted rupture disc UKB® LS

برند:
REMBE® GmbH Safety+Control

مشخصات:

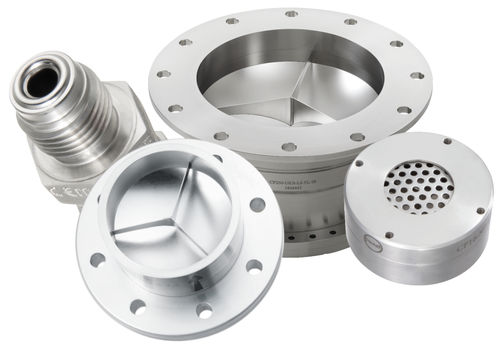

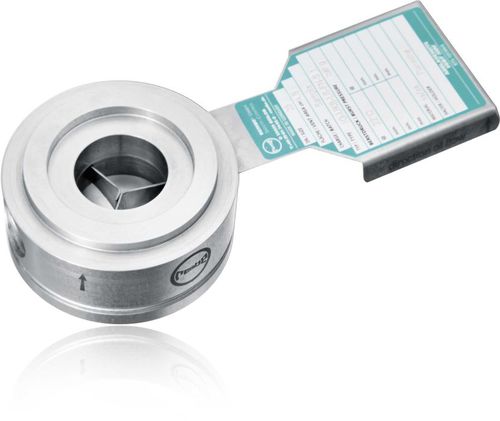

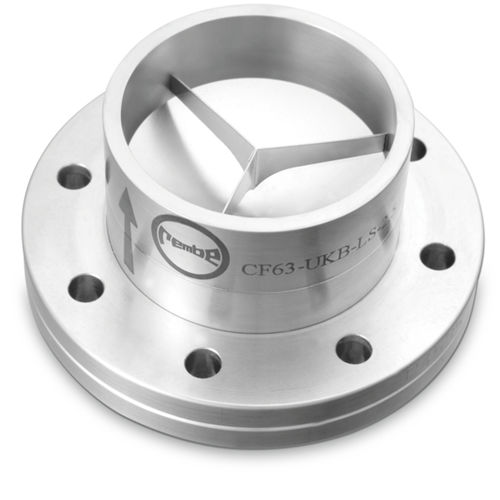

The UKB® LS comprises a customisable housing, a reverse acting rupture disc and a three-section knife. This design provides the lowest possible burst pressures while at the same time offering good vacuum resistance even up to high vacuum conditions. The rupture disc and housing are micro-welded and all elements are made of metal. This ensures maximum leak-tightness. Leakage rates of up to 10-10 are possible.

With a wide array of available connections, we supply the ideal pressure relief unit for every application – even for ultra-clean processes. Despite its individuality, a number of “standard” sizes have become established for UKB LS over the last few decades. These are for installation between industry standard flanges.

Advantages

Maximum leak-tightness: also for helium.

Also suitable for high vacuum applications.

Mechanism

When the defined burst pressure is reached, the rupture disc is pressed against the knife and opens.

توضیحات:
Type
inverted, reverse acting

Material
metal

Other characteristics
custom

Nominal diameter
Max.: 400 mm(16 in)Min.: 20 mm(1 in)
