نام محصول:

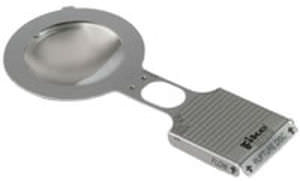

دیسک پارگی معکوس

نام انگلیسی:
Inverted rupture disc Axius®

برند:
Fike

مشخصات:
Designed to be used in aggressive chemical and pharmaceutical applications, the reverse-acting Axius® rupture disc is available in corrosion-resistant materials and has the tightest tolerances available. Enjoy cost and efficiency savings with this high performance disc.

Operate up to 95% of its marked burst pressure for burst pressures over 40 psig (2.76 barg), and up to 95% of the minimum of the burst tolerance at 40 psig (2.76 barg) and below.
Capable of cycling from full vacuum to 95% operating ratio in excess of 100,000 times, even at the lowest burst pressures available.
Disc seal and ring material: Hastelloy® C276 and 316/316L SST.
Operates in both gas and liquid applications.
Can be ordered with an optional FEP or PFA fluoropolymer liner on the process side, minimum burst pressure 30 psig (2.07 barg), maximum temperature 400°F (204°C).
ASME Certified.
Effective in VALVEGUARD protection of expensive Pressure Relief Valves and Safety Relief Valves

توضیحات:
Type
inverted

Material
stainless steel

Other characteristics
low-pressure

Burst pressure
Max.: 600 psiMin.: 7 psi
