نام محصول:
دیسک پارگی صندلی زاویه ای
نام انگلیسی:

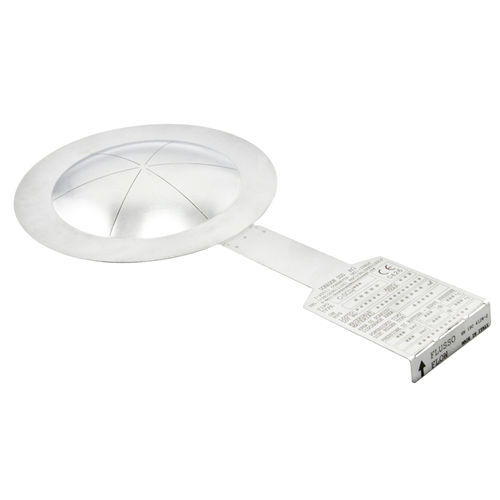

Angular seat rupture disc SCD
برند:
Donadon SDD
مشخصات:
DonadonSDD SCD Rupture discs obtained with NS Nanoscored technology are discs with micro-scored calibrated sections opening in petals, characterised by the presence of 4, 6 or more radial scoring.
This allows for better opening reducing the risk of petal detachment. This makes DonadonSDD SCD rupture discs especially suitable at high bursting pressure. They are used with gas and liquids also in cycling and pulsating conditions without reduction of safety margins.
SCD discs react to excessive pressure in a few milliseconds without fragmentation.
They are especially suited for protection of pressure relief valves. DonadonSDD SCD rupture discs allow for a ratio between operating and bursting pressure up to 85% and have a very good resistance to corrosion. Corrosion resistance may be additionally improved with PTFE lining.
In addition, SCD discs can, in many cases, be subject to absolute vacuum conditions without need for supports.
KRgl – 1.33
Tolerance – from +/- 5 % to +/- 20%
Operating temperature – From – 196°C up to 600°C
Operating margin – up to 85%
Fragmentation – No
Use under valve – Yes
Corrosion resistance – Very good
Linings – Yes
Container – HI/A, HI/P, HI/F, HTC
Rupture sensor – Electrical, Magnetic, Inductive, Optical
ASME Certification [UD STAMP] – Available
PED Certification [CE STAMP] – Available
ATEX EX II 2 GD Certification – Available
توضیحات:
Type
angular seat
Material
stainless steel
Burst pressure
Max.: 413 bar(5,990.06 psi)Min.: 2 bar(29.01 psi)
Nominal diameter
Max.: 900 mm(35 in)Min.: 25 mm(1 in)
