نام محصول:
دمپر آتش مستطیل
نام انگلیسی:

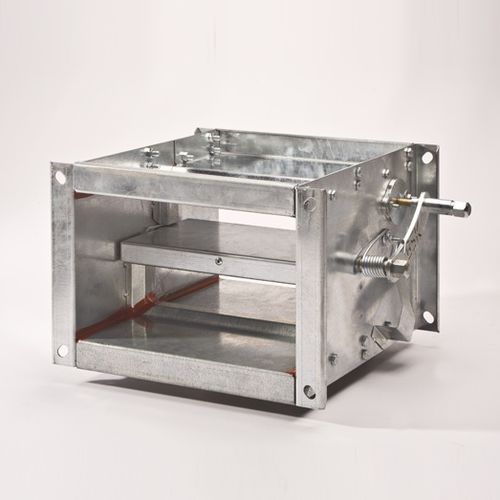

Rectangular fire damper BFDQ series
برند:
BSK Ventilation
مشخصات:
MODEL
BFDQ:Rectangular fire damper with fusible link that melts at 72°C
MATERIAL
Products casing and blades are manufactured from 1,5 mm galvanized sheet and damper handle is manufactured from 5 mm galvanized DKP sheet. Furthermore, fire resistant rockwool with 70 kg/m density and 20 mm thickness is used between the walls of blades.
USAGE
Fire dampers are used for preventing the spread of fire and smoke through ventilation systems in the buildings. When the fusible link mechanism reaches to 72°C, it closes the damper blade by driving the return spring and by that it prevents the fire to spread to other environments. Fire dampers also can be controlled with servomotor by automation system. In smoke dampers, the damper is opened by 24 Volt or 220 Volt commanded servomotor according to the signal that comes from automation system and the smoke extraction is done. Fusible link is fixed to the surface where the damper handle is attached, in such way that it can be replaced easily. Installation of casing sheets to each other is made with bolt and nut. Fire resistant, impermeable red silicone is applied to joints.
ASSEMBLY
Installation to air duct.
Installation to wall with wall transition piece.
ACCESSORIES
WTP : Wall transition piece
SM : Servomotor (22 Volt or 220 Volt)
ORDER CODE
Model / Standard Dimensions / Accessory
SYMBOLS
W (mm) : Neck Length
H (mm) : Neck Width
توضیحات:
Configuration
rectangular
