نام محصول:

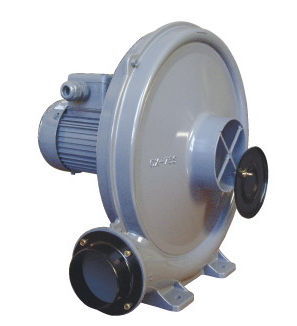

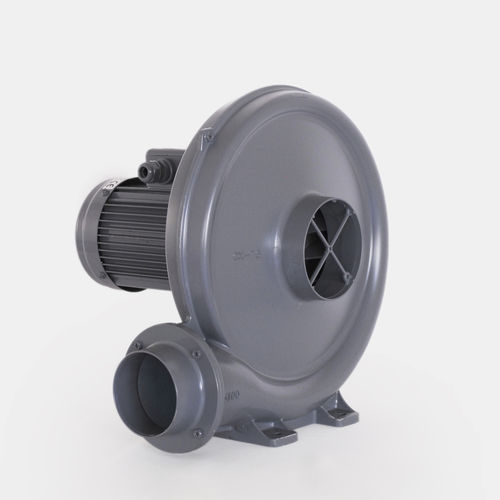

دمنده گریز از مرکز

نام انگلیسی:
Centrifugal blower CX series

برند:
Chuan-Fan Electric

مشخصات:
The centrifugal turbo blowers are durable units designed for printing machines, burning machines, synthetic Extruders, laminating, film production machines, uniform hotness apparatus, domestic machines, dust collectors, textile equipment, toxic waste apparatus, hot air blowers, dryer equipment, incinerators, food and beverage industries, cooling machines and grain elevators.

It can produce high pressure and maximum flow rate. It is constructed with aluminum alloy material, hence it is lightweight. The I.E.C. intended motor (1HP UP), Magpie Cage Stimulation Motors and shaft are its prominent characteristics to satisfy long term and incessant functions. You can easily adjust its air flow according to its design. All styles and models are available for quick delivery.

توضیحات:
Type
air

Technology
centrifugal

Number of stages
single-stage

Applications
cooling, for vacuum, conveying, discharge, recirculation, ignition, drying, for ventilation, furnace, for food applications, centrifuge, process, for boiler, for static charge elimination, transport, heavy-duty

Voltage / frequency
220 V / 50 Hz, 220 v / 60 Hz, 380 v / 50 Hz, 380 v / 60 Hz, 110 v / 50 Hz, 110 v / 60 Hz

Norms
UL, CSA

Energy class
IE3, IE2

Other characteristics
oil-free, high-pressure, compact, aluminum, positive pressure, direct-drive, three-phase, low-pressure, negative pressure, medium-pressure

Flow
Min.: 5 m³/min(176.573 ft³/min)Max.: 53 m³/min(1,871.677 ft³/min)

Operating pressure
Min.: 700 Pa(0.102 psi)Max.: 4,400 Pa(0.638 psi)

Nominal power
Min.: 0.2 kW(0.272 hp)Max.: 3.7 kW(5.031 hp)

Sound level
Min.: 65 dBMax.: 100 dB

Weight
Min.: 7 kg(15.43 lb)Max.: 16,000 kg(17.64 lb)

Length
Min.: 335 mm(13.19 in)Max.: 458 mm(18.03 in)

Depth
Min.: 272 mm(10.7 in)Max.: 351 mm(13.8 in)

Height
Min.: 320 mm(12.6 in)Max.: 430 mm(16.9 in)
