نام محصول:
دمنده کوچک
نام انگلیسی:

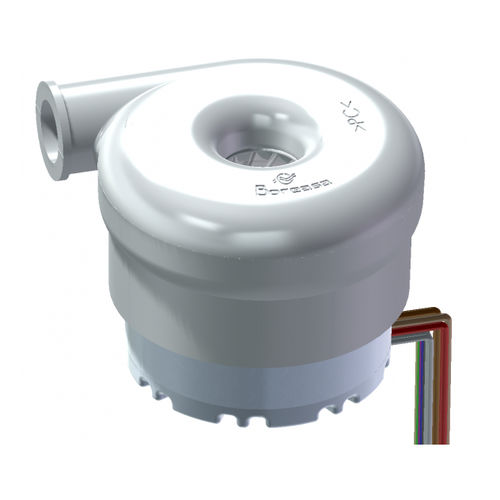

Small blower C60S1
برند:
Boreasa Technologies Co., Ltd
مشخصات:
Product Parameter：
IN freeblowing: 1’250/1’600mA
n freeblowing: 31’200/34’500rpm
V freeblowing: 355/407 l/min
P static: 4’200/5’019Pa
PN work. point: 24.0/33.1W
VCC Nominal Voltage:24V
Features：

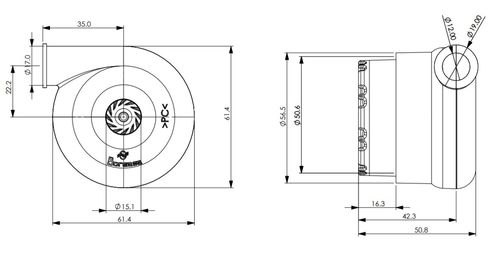

* Dimensions: 61.4 x 61.4 x 50.8 mm (2.42 x 2.42 x 2 in)
* Housing and Impeller materials: Medical grade thermoplastics

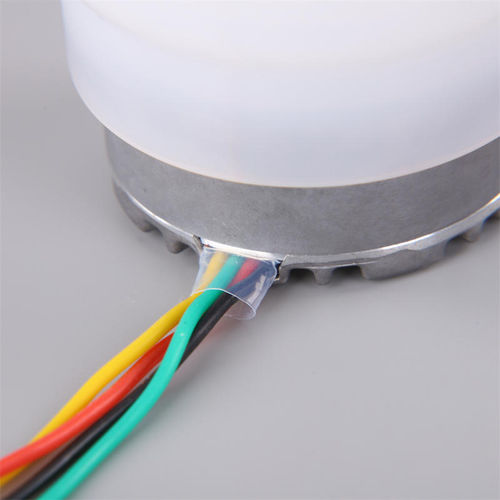

* Lead Wire: 250mm (3 x AWG22, 6 x AWG28)
* Weight: 225 gr. (7.95oz)
* Operational Temperature: -20 to 50 ºC / -4 to 122 ºF
* Three Phase Brushless Motor w/ Hall Sensor
* Connectors: TE CONNECTIVITY (TE), MICRO-MATCH MOW.06P 215083-6 TE CONNECTIVITY (TE), CST-100 II 1375820-3 Standard Motor Internal Temperature Signal
* Available in 12 V on demand
Advantage：
* Miniature: 54 ~ 95 mm in diameter
* High-performance: max pressure up to 14 kPa
* High efficiency: power conversion efficiency up to 55%
* Long lifespan: over 30,000 hrs in Bi-Level mode
* Rapid response: <120 ms between idle and max speed
* Low vibration: balanced up to G0.4
* Low noise: <26 dB in CPAP machines
* Drivers: square wave, FOC, or integrated in motors
Application Field:
1.Medical Equipment
Medical Ventilator
Home Respirator
Nmr Machine
In Vitro Diagnostic Devices
2.Industrial Application Of Air Treatment
Aircraft Smoke Sampling
Onboard Thermal Management
Government Facility Air Sampling
Positive Pressure Protective Clothing
3.Air Transport Applications
Fuel Cells
Fresh Air System
توضیحات:
Type
air, gas
Technology
radial
Number of stages
dual-stage
Applications
for vacuum, conveying, cooling, drying, discharge, for ventilation, air conditioning, for hot welding torch, cleaner, for food applications, for parts, suction, centrifuge, engine, for vehicles, for boiler, for machines, for gas, for automobiles, for electrical cabinets, for medical devices, for packaging, for fuel cells
Voltage / frequency
24 Vdc, 12 Vdc
Other characteristics
positive pressure, oil-free, three-phase, variable-speed, on magnetic bearing, high-pressure, compact, aluminum, pneumatic, direct-drive, high-speed, brushless DC, small, flow control, vortex
Flow
Min.: 350 l/min(92.46 us gal/min)Max.: 407 l/min(107.518 us gal/min)
Operating pressure
Min.: 4,200 Pa(0.609 psi)Max.: 5,019 Pa(0.728 psi)
Nominal power
Min.: 24 W(0.033 hp)Max.: 33.1 W(0.045 hp)
Weight
225 g(7.94 oz)
Length
61.4 mm(2.42 in)
Depth
61.4 mm(2.4 in)
Height
50.8 mm(2 in)
