نام محصول:
دمنده پیچ
نام انگلیسی:
Screw blower Delta Hybrid
برند:
Aerzener Maschinenfabrik GmbH
مشخصات:

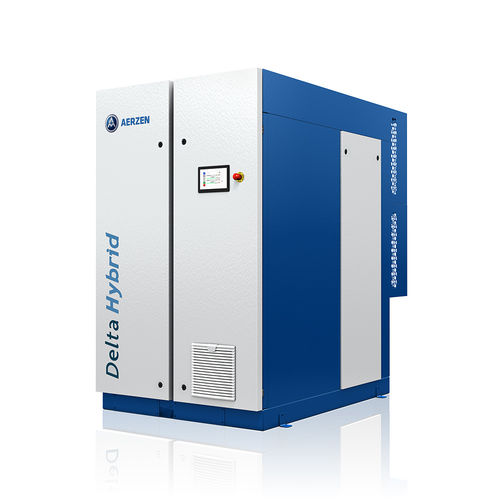

A single machine design that fits every single application.
AERZEN modular design with standard options meets almost every customer requirement and therefore the new Delta Hybrid sizes thanks to them features and to a big volume flow control range they can be used in almost every application for oil free air compression, fix or variable speed, up to 1250 mbarg. Safety has been and will be always a focus for Aerzen Delta Hybrid: we avoid contamination of customer product and process, this is especially important in the chemical and food & beverage industries. For this reason units are oil-free TÜV-certified according to ISO 8573-1 class, they don´t have any coating of the screw rotors and there is the possibility to have a reactive silencer without absorption material. Thanks to their reliability and features new Delta Hybrid sizes can be installed worldwide: with extreme ambient temperatures of -40°C to +50°C but also with the optional outdoor protection under direct atmosphieric agents. Units are even so silent that in outdoor operation nobody will notice them.
AERZEN Engineering
Where a standard solution is not sufficient, AERZEN develops with its engineering special designs or special machine configurations. Applications
Applications
Sewage treatment
Drinking water purification
Pneumatic conveyance of bulk materials
River and lake aeration
and many more
Industries
Sewage treatment
Chemical and process technology
Glass and paper manufacturing
Food industry
Environmental technology
and many more
توضیحات:
Type
air
Technology
screw
Number of stages
single-stage
Applications
conveying, for ventilation, for food applications, for wastewater treatment
Other characteristics
oil-free, direct-drive, low-pressure
Flow
Min.: 400 m³/h(14,125.867 ft³/h)Max.: 4,800 m³/h(169,510.4 ft³/h)
Operating pressure
Min.: 300 mbar(4.351 psi)Max.: 1,250 mbar(18.13 psi)
Nominal power
55 kW, 90 kW, 160 kW(74.779 hp, 122.366 hp, 217.539 hp)
Sound level
75 dB, 76 dB
Weight
1,700 kg, 2,500 kg(3,747.86 lb, 5,511.56 lb)
Height
2,134 mm, 2,436 mm(84 in, 95.9 in)
