نام محصول:
دمنده هوا
نام انگلیسی:
Air blower ZG series
برند:
Shanghai EVP Vacuum Technology Co., LTD
مشخصات:

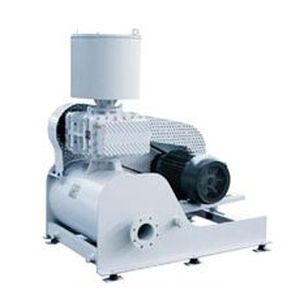

ZG Series Roots Blower
Description: ZG Blowers with tri-lobe are heavy duty style new products based on MB blowers which technology is from America.
Introduction:
ZG Blowers with tri-lobe are heavy duty style new products based on MB blowers which technology is from America. It is the replacement for Duroflow models of Gardner Denver, RAM/RCS models of Dresser Roots, and RBS models of Robuschi.
Advantages:
High blower speed with 4000 to 5000 rpm, high efficiency, and compact structure design
Low noise tri-lobe rotor
Noise-reduction know-how application for casing Integral-shaft ductile iron impellors
Dual splash lubrication
Over sized cylindrical roller bearings
Hardened teeth face for precision helical timing gear, taper-lock shaft mounting Versatile configuration
Piston ring air seals Lip type viton oil seals
Air cooling, aluminum oil tank
Automatic belt tensioner and integrated discharge silencer base frame application for the blower package Ductile cast iron pulleys are applied to meet the high speed
Start up valve is optional to realize the blower starting without load even if without bypass air release valve.
Applications:
ZG series roots blowers are widely used in sewage treatment, coal, cement, petrochemical, smelt, oxygen making, pneumatic conveying, electric power.
توضیحات:
Type
air
Technology
ring
Number of stages
single-stage
Applications
conveying, cooling, discharge, petrochemical
Other characteristics
aluminum, compact, pneumatic
Flow
Min.: 1 m³/min(35.315 ft³/min)Max.: 113 m³/min(3,990.557 ft³/min)
Operating pressure
Min.: 9,800 Pa(1.421 psi)Max.: 98,000 Pa(14.214 psi)
Nominal power
Min.: 1.1 kW(1.496 hp)Max.: 185 kW(251.53 hp)
