نام محصول:
دمنده هوا
نام انگلیسی:

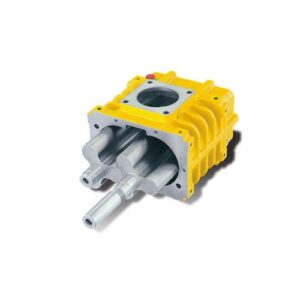

Air blower TS,R
برند:
Enfound enterprise co.,ltd
مشخصات:

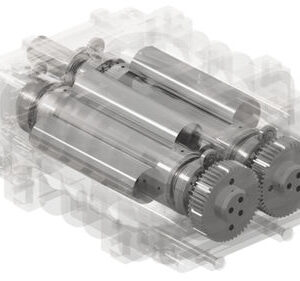

Working Principles: Roots Blowers compress air by two rotors rotate in opposite directions. The tiny clearance between the rotors and between each rotor and housing wall amounts to approx. No contact between the rotors so the rotors can make high speed operation and offer the high capacity. By the way, it do not need add lubricating oil between rotors so it can transport clean and none oil moist air
Roots blower: outlet: 1“-20“, pressure: 1000-20000mmAq, air flow: 0.1-490 m3/min Roots blower: stable air flow,, less pressure change Roots blower: simple construction, free from trouble Submersible roots blower: pressure: 1000-60000mmAq, air flow: 0.1-490m3/min Submersible roots blower: no noise, no soundproofing devices Submersible roots blower: sturdy structure to ensure durability (,) ,
Applications: 1﹒Pneumatic Conveying 2﹒Sewage Treatment 3﹒Conveying of Gas 4. Water Aeration 5﹒Blending ＆ Mixing 6﹒Agitating of Chemical Liquids 7﹒Supply of Combustion Air 8﹒Scavenging 9﹒Drying 10﹒Used as Vacuum Pumps
توضیحات:
Type
air
Number of stages
single-stage
Applications
conveying, transport, gas, for water, rotor
Flow
Max.: 490 m³/min(17,304.187 ft³/min)Min.: 0.1 m³/min(3.531 ft³/min)
Operating pressure
Max.: 2 bar(29.008 psi)Min.: 0.1 bar(1.45 psi)
Nominal power
Max.: 473 kW(643.101 hp)Min.: 0.53 kW(0.721 hp)
