نام محصول:
دمنده هوایی یونیزه
نام انگلیسی:

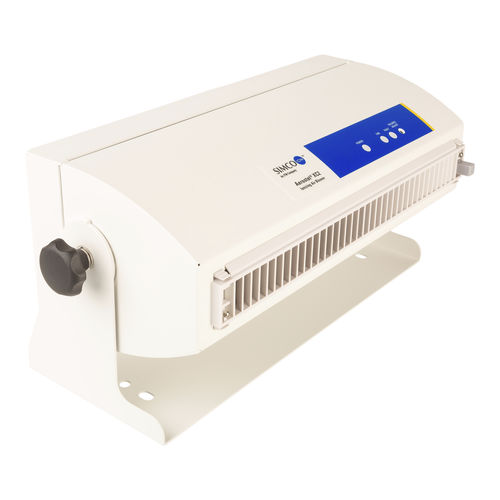

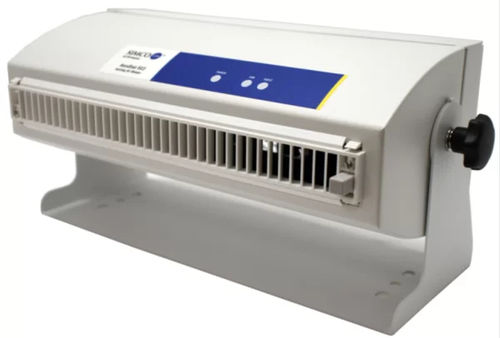

Ionizing air blower XC2 Blower
برند:
Simco-Ion
مشخصات:
The Aerostat XC2 provides complete area ionization protection. As with its’ predecessor, the Aerostat XC2 is designed and built for reliable, long-term static control for a variety of electronic, semiconductor, flat-panel display and medical assembly applications. The XC2 offers coverage for larger areas with <12 second discharge times at 6 feet (1.8m) distance from the face of the blower. The weight-saving design allows the Aerostat XC2 to be mounted above the work surface, which is especially effective for flat panel display module assembly. The Aerostat XC2 offers inherent balance to 0 ±10V for protection of sensitive electronic components. The XC2 is loaded with usability features including a built-in emitter point cleaner, adjustable locking stand, fan speed control, optional airflow heater and separate balance and fan stall alarm LEDs with optional audible alarm. These features, plus its stylish design, make the Aerostat XC2 the ideal extended coverage ionization blower for assembly, test and packaging areas.
Features
• Large ionization area coverage
• Weight saving design
• Built-in emitter cleaner
• ±10V self-balancing (“Micropulse”) technology
• Local alarm LEDs, Facility Monitoring System (FMS) connection and optional audible alarm
• Integrated heater for warm air flow
Benefits
• Designed for complete static neutralization across the entire work surface area
• Light enough to be easily mounted on or above the work surface
• Insures consistent, balanced performance
• High precision balance never needs calibrating
• Ionization status can easily be monitored locally and at a remote location
• User comfort helps to insure that ionization remains on
توضیحات:
Type
ionizing air
Technology
centrifugal
Number of stages
single-stage
Applications
filter, for static charge elimination
Other characteristics
compact, anti-static
Flow
Min.: 265 ft³/min(7.504 m³/min)Max.: 620 ft³/min(17.556 m³/min)
Nominal power
420 W(0.571 hp)
