نام محصول:
دمنده هوایی یونیزه
نام انگلیسی:
Ionizing air blower VolumION
برند:
Simco-Ion
مشخصات:

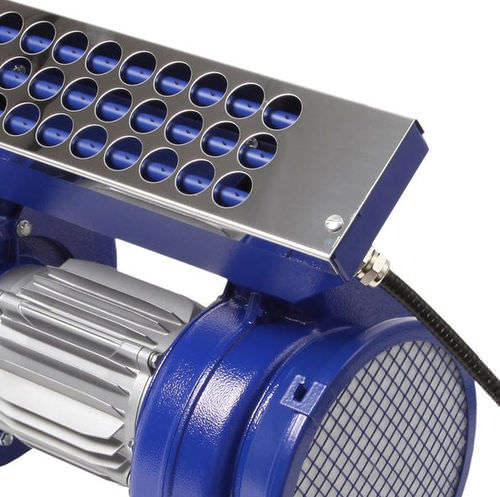

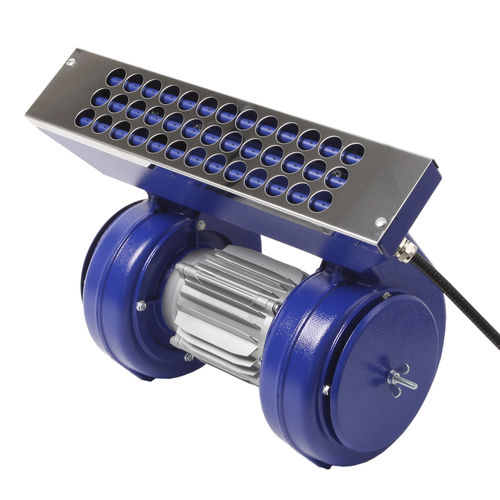

The VolumION is a very robust ionizing air blower with an effective ionising width of 500 mm. The VolumION consists of a motor, two fans and an ionisation unit. Ambient air is drawn on two sides and blown off along three anti-static bars. The air flow that is drawn in is adjustable on both sides. This ionising air blower is also ideal for long range neutralising when paper and film webs are being wound. The air inlets can be fitted with a special filter.
Working distance up to 1500 mm
Industrial motor
Easy to clean
Optional air filter
Working distance: 1500 mm max.
Working width: 500 mm
Ideal for long range neutralising when paper and film webs are being wound
Built-in shockless anti-static bars
The air inlets can be fitted with a special filter
Working distance
1500 mm max.
Working width
500 mm
Housing material
Steel, powder coating
Ionizing bar material
PVC
Emitter pins
special alloy
Cable bar
3 m metal shielded
Cable motor
3 m (Neoprene)
Weight
11 kg
Ambient temperature
0 – 50 °C
Use circumstances
Industrial
Noise level
77 dB(A) (at 1 metre)
Airvolume
50 Hz: 600 m3/h
60 Hz: 660 m3/h
U primary
400 V AC, 50 Hz/60 Hz
Power consumption
140 Watt
Option
Filter
Suitable power unit
A2A7S/MPM
توضیحات:
Type
ionizing air
Technology
radial
Number of stages
single-stage
Applications
filter, for static charge elimination
Other characteristics
anti-static
Flow
660 m³/h(23,307.68 ft³/h)
Nominal power
140 W(0.19 hp)
