نام محصول:
دمنده هوایی یونیزه
نام انگلیسی:
Ionizing air blower HP-N-EX
برند:
Simco-Ion
مشخصات:

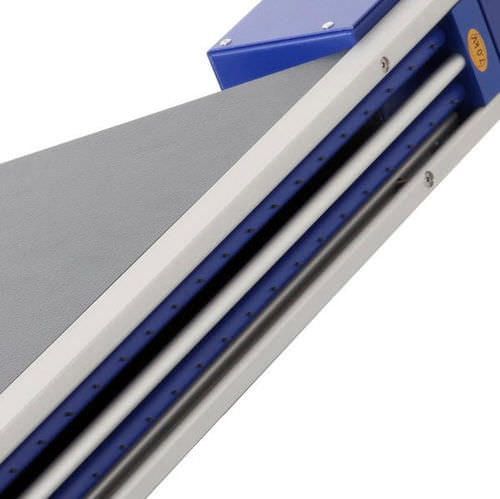

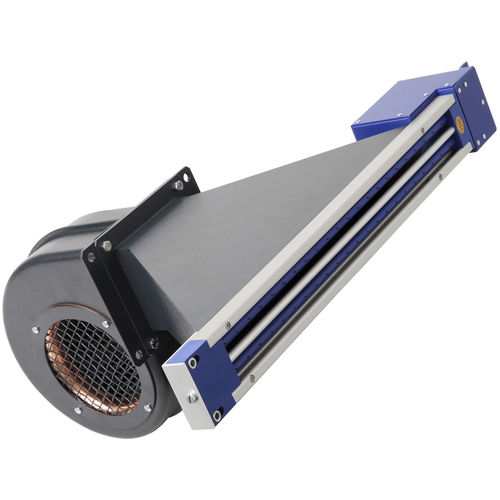

The HP-N-Ex ionizing air blower consists of a motor and a fan. The ambient air is drawn on one side and blown off along an anti-static bar. The effective ionizing width is 500 mm. This ionisation blower has been approved for use in certain explosion-hazardous environments. The power unit is integrated in the anti-static bar.
Working distance up to 1500 mm
Industrial motor
ATEX certified
Optional air filter
Working distance: 1500 mm max.
Working width: 500 mm
Approved for use in certain hazardous environments
Integrated power unit
Working distance
1500 mm max.
Working width
500 mm
Housing material
Aluminum / steel
Inner bar material
PVC
Emitter pins
special alloy
Cable bar
5 m metal shielded
Cable motor
5 m (Neoprene)
Weight
13 kg
Ambient temperature
0 – 40 °C
Use circumstances
Industrial
Noise level
60 dB (A) (at 1 metre)
U primary
230/400 V AC, 50 Hz, 3 Phasen
Power consumption
120 Watt
Option
Neon lamp, external
Suitable power unit
Integrated
Approval
ATEX
ATEX category
II 2G Ex smb IIB T4 (bar)
II 2G c T4 (blower)
II 2G Ex e II T4 (motor)
ATEX certificate
BAS00ATEX2162X
PTB02ATEX3114
توضیحات:
Type
ionizing air
Technology
centrifugal
Number of stages
single-stage
Applications
for static charge elimination
Other characteristics
aluminum, explosion-proof, anti-static
Nominal power
120 W(0.163 hp)
