نام محصول:
دریچه
نام انگلیسی:
Gate valve Wcb API600
برند:
Zhejiang Jieyu Valve Company
مشخصات:

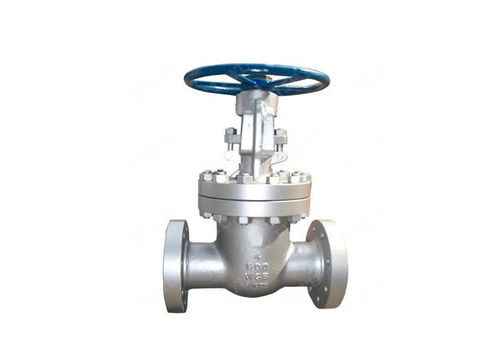

Wcb API600 Class 600lb Cast Steel Gate Valve , Manual Actuator 4 Inch Gate Valve
Product Details:
Place of Origin: – Wenzhou China
Brand Name: – JIEYU
Certification: – API ISO Ts CE
Payment & Shipping Terms:
Minimum Order Quantity: – 1PC
Price: – Negotiable
Packaging Details: – Plywood Case
Delivery Time: – 7-30 work days
Payment Terms: – L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: – 10000PCS/Mouth
Specification:
Size: 1/2″-30″
Pressure:150LB~1500LB
Body Material: Carbon Steel A216 WCB/A105 (GS-C25/ GP240GH/ 1.0619/ P285NH),, WCC, low Carbon Steel LCB, LCC, Alloy St A217 WC6, WC9, C5, C12, Stainless steel A351 CF8, CF8M, CF3, CF3M, CF8C, Duplex steel A890 GR.4A GR.5A,Etc.
Trim Material: 13%Cr,SS304,SS316, SS304L, SS316L, F11, F22 Etc
Type: Rising Stem, BB, FB, OS&Y
Operation: Hand Wheel. Gear Devices, Electricty, Etc
End: Flanged RF/ RTJ/ FM/ FF , Butt-welding(BW)
Full Port Design, Outside and Screw(OS&Y), Bolted bonnet, Back Seal Structure
Flexible or Solid wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Optional Bypass system
Standard:
Design And Manufacture: API 600, API 6D, BS1414,Etc
Face To Face (End To End): ANSI B16.10, API 6D,Etc
Flanged Connection: ANSI B16.5, ASME B16.47 Etc
Butt Welded End: ANSI B16.25,Etc
Test And Inspection: API 598, API 6D,Etc
توضیحات:
Type
gate
Operation
manual, with handwheel
Function
for control
Media
for water, for oil, for gas
Body
welded, T, carbon steel, alloy, cast steel
Applications
for water, actuator
Other characteristics
ISO, ANSI, standard, bypass
DN
Max.: 30 inMin.: 0.5 in
