نام محصول:
دریچه
نام انگلیسی:
Gate valve
برند:
Zhejiang Jieyu Valve Company
مشخصات:

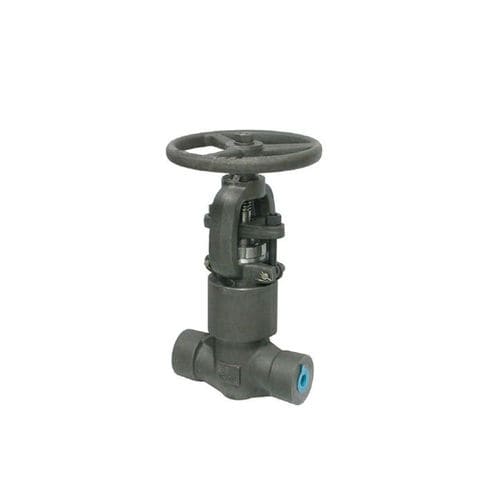

Pressure Seal Extended Stem Gate Valve With Outside Screw And OS&Y
Product Details:
Place of Origin: – WENZHOU,CHINA
Brand Name: – JIEYU
Certification: – API ISO Ts CE
Payment & Shipping Terms:
Minimum Order Quantity: – 1PC
Price: – Negotiable
Packaging Details: – Wooden Case
Delivery Time: – 7-30 work days
Payment Terms: – L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: – 100000 Sets/Year
Pressure Seal Extended Stem Gate Valve
JIEYU gate valves are multi-turn valves typically used as a stop valve or isolation valve in either fully open or fully closed positions. Our gate valve design utilizes an Outside Screw and Yoke (OS&Y) which is advantageous in that the threads are outside the fluid resulting in minimized thread damage.
Design Features:
Outside Screw and Yoke(OS&Y)
Two Piece self aligning packing gland
Bolted bonnet with spiral-wound gasket or Weld bonnet
Integral backseat
Optional Features:
Forged Carbon, Stainless or Alloy Steel Materials
Full Port option available for classes 150 – 2500
Extended Stem or Below Seal
Flanged, Threaded or Socket Weld Ends
Available in all trim configurations
Welded Bonnet or Pressure Seal Bonnet
Locking Device upon request
Manufacturing to NACE MR0175 upon request
Material Selection for Globe Valves:
Carbon Steel (A105)
Low Temperture Carbon Steel (LF2)
Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
Low Alloys (F1, F11, F22)
High Alloys (F5, F9,F91, F62, F20 )
Duplex & Super Duplex (2205, 2507, S32760)
Bronze (C95800, C95500, C95400)
توضیحات:
Type
gate
Operation
with handwheel
Function
stop
Body$
threaded, weld, T, welded
Material$
stainless steel, bronze, carbon steel
Other characteristics
ISO, locking, socket weld, integral, pressure seal
DN
Min.: 15 mm(0.591 in)Max.: 400 mm(15.748 in)
