نام محصول:
دریچه
نام انگلیسی:

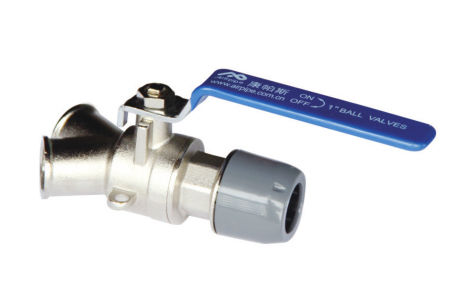

Ball valve
برند:
Zhejiang Compressed Fluid Transmission Engineering Co.,Ltd
مشخصات:
We only produce compressed air piping system network, and this product is one of the components.
AIRPIPE quickl valve can be installed in the piping and some important position such as outlet of compressor and upstream of pneumatic tools .Good for the separation ,adjustment and maintenance .
Quick install .
Provide a range of male threaded valve to better connect the system .
Technology Date
Suitable fluid: compressed air, vacuum, inert gas, water
The maximum working pressure at -20 ℃ to 70 ℃ (-30 ℃ to 80 ℃), 13bar.
Vacuum: 0.13bar absolute pressure.
Seamless Extruded Aluminum tube (GB/T4337.1-2000).
Feature
The high performance of double ‘O’sealing ring ensures excellent seal and no leakage
Fin guide design and the low friction inner surface eliminate the airflow restriction,reducing the pressure drop as much as possible
Full volume flow reduces the pressure drop efficiently
All is BSP thread
توضیحات:
Type
ball
Operation
lever
Media
for compressed air
Body$
threaded
Applications
vacuum
Number of channels
3-way
Associated function
reducing
DN
Min.: 20 mm(0.787 in)Max.: 25 mm(0.984 in)
Pressure
13 bar(188.5 psi)
Temperature
Min.: -30 °C(-22 °F)Max.: 80 °C(176 °F)
