نام محصول:
دریچه
نام انگلیسی:

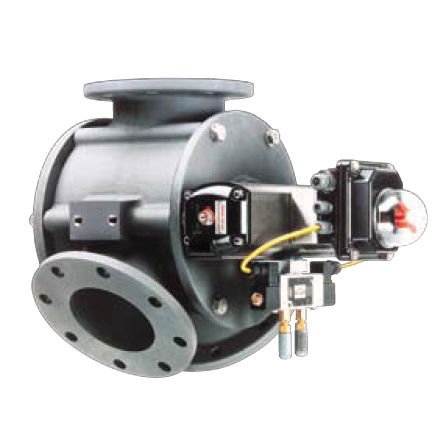

Ball valve Y series
برند:
Zeppelin Silos & Systems
مشخصات:
Application
The diverter valve Y is used especially for diverting the bulk material flow in pneumatic dense- and dilute-phase conveying systems. The patented design of the plug enables application in any conveying direction.
Design characteristics
Suitable for pneumatic dense- and dilute-phase conveying systems
Smooth and gap-free transition due to patented design of inlet and outlet
Single channel design avoids plugging
Pressure tight from -1.0 up to +6.0 bar (g) to the outside and the non activated leg
Temperature range from -20°C to +120°C, option with heating system from -52 to +180°C
Easy subsequent change of complete drive from left to right side of diverter valve
Easily visible rotary plug direction indicator
Direct control of plug orientation by proximity switches
Diverting angle 2 x 45° (symmetrical)
Standard electrical connection design protection class IP 65
Options:
– Sealing set variations available. Static or inflatable sealing. Sealing position in housing or rotary plug
– Design according to ATEX 2014/34/EU
– Special versions upon request
توضیحات:
Type
ball
Operation
pneumatically-operated
Function
diverter
Body$
Y, symmetrical
Other characteristics
ATEX
DN
Min.: 150 mm(5.906 in)Max.: 350 mm(13.78 in)
Pressure
Min.: -1 bar(-14.5 psi)Max.: 6 bar(87 psi)
Temperature
Min.: -52 °C(-62 °F)Max.: 180 °C(356 °F)
