نام محصول:
دریچه

نام انگلیسی:
Butterfly valve

برند:
Wenzhou Lihong Machinery TECHNOLOGY Co., LTD

مشخصات:

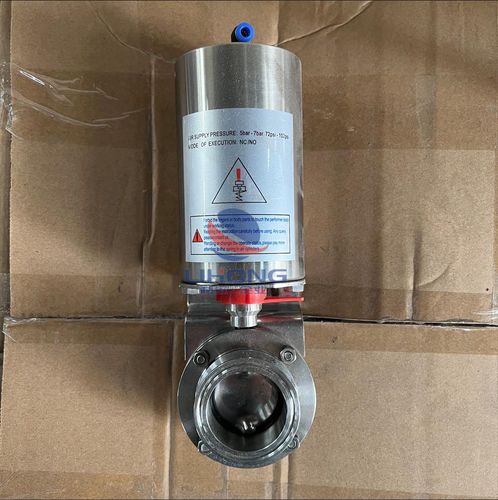

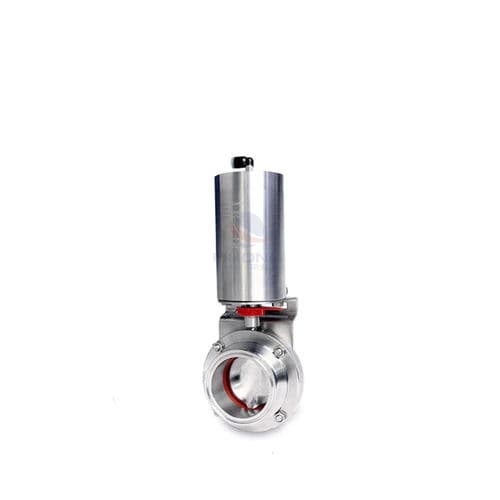

Pneumatic butterfly valve

Size:1″-4″

Clamp-type pneumatic butterfly valve criteria: DIN, SMS, ISO, 3A, IDF, RJT

Clamp-type pneumatic butterfly valve material: AISI304 or AISI316L with material contact parts

Clamp-type aerodynamic butterfly valve application: clamp type pneumatic butterfly valve can be used in industrial fields such as dairy products, beer, food, beverage, pharmaceutical, bioengineering

Clamp-type pneumatic butterfly valve Others: A intelligent controller can be installed, or a position sensor can be installed

توضیحات:
Type
butterfly

Operation
pneumatic

Function
flow control

Media
for water, for chemical products, beverage, for dairy products

Body$
flange, threaded, 3-piece, 2-piece, welded

Applications
for the chemical industry, for food applications, clamp, for process applications, for pipelines, for pharmaceutical applications, beverage, for dairy products

Material$
stainless steel

Number of channels
2/2-way

Other characteristics
ISO, DIN

DN
Min.: 25.4 mm(1 in)Max.: 101.6 mm(4 in)

Pressure
Min.: 0 bar(0 psi)Max.: 0 bar(0 psi)

Temperature
20 °C(68 °F)Min.: -20 °C(-4 °F)Max.: 90 °C(194 °F)
