نام محصول:
دریچه
نام انگلیسی:

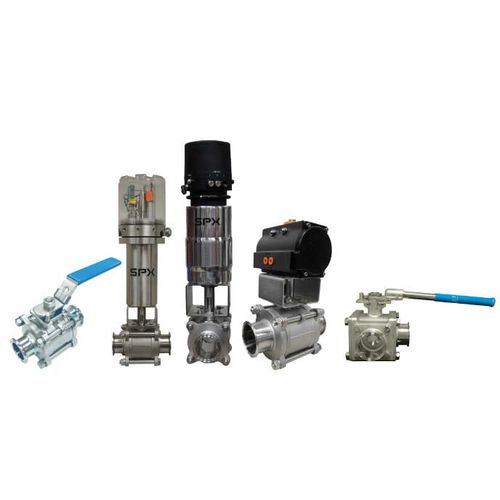

Ball valve 300/350
برند:
Waukesha Cherry-Burrell
مشخصات:
Valves / Ball Valves
Ball valves offer great economy and durability for a wide range of applications that do not require clean-in-place (CIP) service. They are easy to install and maintain.
FEATURES
The full ported, straight-through design of ball valves frees the flow path from obstructions. As a result, pressure drops across the valves are reduced, and there is no change in elevation for piping through the valve. This allows efficient and safe production or cleaning processes in the food, beverage, dairy, industrial, and chemical industries.
All stainless construction: forged body and ball
Full port opening for unrestricted flow in the open position
Available in “Normally Closed”, “Normally Open” and “Double Acting” Actuation
Maintenance-free pneumatic actuator with 1/4” polytube air connections
Easy retrofit from manual to pneumatic actuator on existing valves in field
Three piece design with floating seals
FDA approved materials: reinforced PTFE seats
Cavity filled
L-Port and T-Port options available – 350 series only
توضیحات:
Type
ball
Operation
manual, lever, pneumatic
Function
for control
Media
for liquid food products and beverages
Applications
industrial, chemical, beverage, food, actuator
Material$
PTFE, stainless steel
Number of channels
3-way, 2-way
Associated function
service
DN
Min.: 0.25 inMax.: 4 in
Pressure
7 bar, 10 bar(101.5 psi, 145 psi)
Temperature
Min.: -17 °C(1 °F)Max.: 175 °C(347 °F)
