نام محصول:
دریچه
نام انگلیسی:
Butterfly valve VFS series
برند:
WAMGROUP S.p.A
مشخصات:
With way over a million units operating worldwide, WAM VFS-type Butterfly Valves for powdery and granular materials represent one of the Group’s most industrial products.

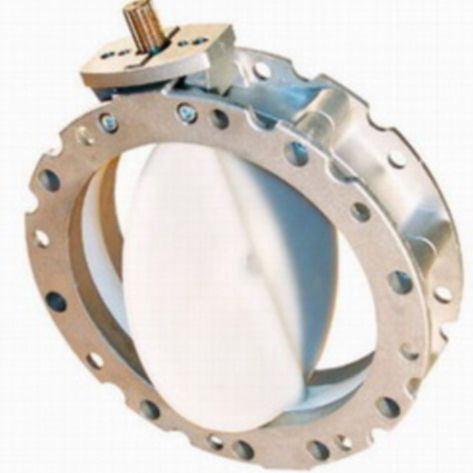

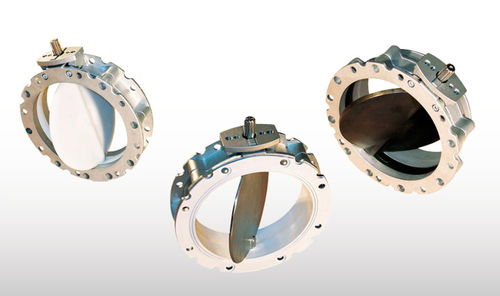

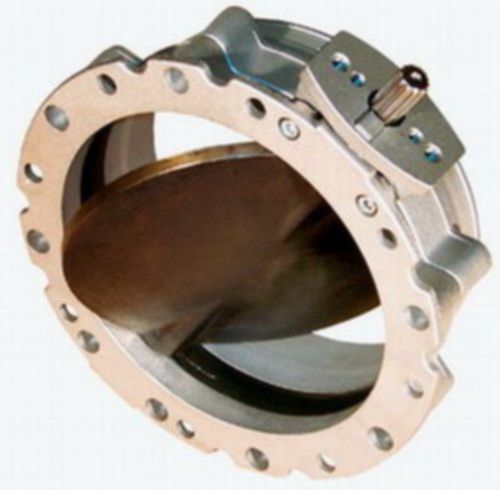

VFS Butterfly Valves consist of two high-pressure die-cast semi-bodies manufactured from aluminium alloy, a swivel disc in SINT polymer composite or cast iron, and a pre-stressed elastomer seal.
For the food industry a version with stainless steel disc and an FDA-approved integral seal is available.
While V1FS has a top flange and a beaded bottom section suitable for the attachment of a flexible sleeve, the V2FS comes with an identical top and bottom flange.
To close silos, hoppers or bins containing powders or granules, VFS Butterfly Valves range among the most widely used equipment worldwide.
What used to be custom-built items for specific applications, WAM has turned into a mass-produced, industrial product with features that allow extremely versatile use.

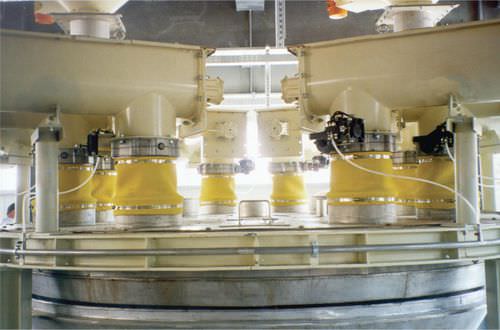

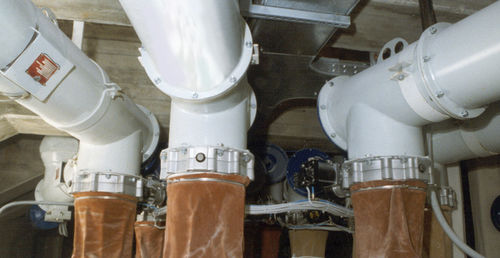

VFS Butterfly Valves are used in all types of powder and granular material processing plants where interception of gravity-fed or pneumatically conveyed dry materials is required. They are fitted beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. Due to their special design and engineering materials used, they represent a particularly cost-effective yet most efficient solution.
توضیحات:
Type
butterfly
Operation
electric
Function
shut-off
Body
stainless steel, cast iron, alloy, aluminum
Applications
for the food industry, for the pharmaceutical industry, for bulk materials, for powders, for granulates, for silos, for heavy-duty applications, for the construction sector, cement, for plastics
Other characteristics
high-pressure, with seal, ATEX
DN
Max.: 400 mm(15.748 in)Min.: 100 mm(3.937 in)
Pressure
0.2 bar(2.9 psi)
