نام محصول:
دریچه
نام انگلیسی:

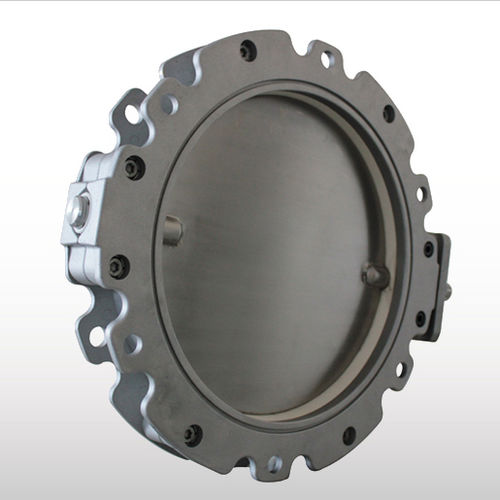

Butterfly valve VFP-VFPX
برند:
WAMGROUP S.p.A
مشخصات:
VFP/VFPX Butterfly Valves can be fitted beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. Due to their special design material residue between valve and the connected feeding device is drastically reduced. This line of valves is compliant with Regulation (EC) No. 1935/2004 on materials and articles intended to come into contact with food.
Description
VFP Butterfly Valves consist of two high-pressure die-cast semi-bodies manufactured from aluminium alloy, a swivel disc in SINT engineering polymer, stainless steelor cast iron, and a pre-stressed elastomeric
seal.
For food applications a version with stainless steel disc and integral FDA-approved seal is available.
VFP Butterfly Valve can be used for any kind of powder or granular material stored in silos or containers.
Function
VFP Butterfly Valves are used in all types of bulk solids processing plants where interception of gravity-fed or pneumatically conveyed dry powders or granules is required. VFP Butterfly Valves can be fitted beneath hoppers, bins, silos, screw or other type conveyors, or for material interception in pneumatic conveying ducts. Due to their special design and to the engineering materials used, they represent a particularly economic yet most efficient solution in all product processing where contamination and material pollution represent a critical point.
Features
• Food-grade components manufactured from FDA and EC 1935/2004-certified materials
• V2FP with identical top and bottom flange
• High-pressure die-cast semi-bodies manufactured from aluminium alloy
• Disc in cast iron, SINT® or Polyacetal engineering polymer, stainless steel
توضیحات:
Type
butterfly
Operation
lever
Function
flow control
Body$
ATEX
Applications
for the food industry, for the pharmaceutical industry, beverage, for the cosmetics industry, for wood
Material$
aluminum, alloy, plastic, stainless steel
Other characteristics
high-pressure, with seal, ATEX
DN
Min.: 100 mm(3.937 in)Max.: 400 mm(15.748 in)
Pressure
0.2 bar(2.9 psi)
