نام محصول:
دریچه
نام انگلیسی:

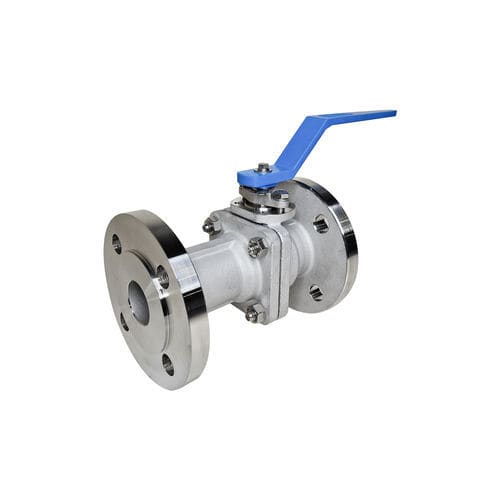

Ball valve CTR
برند:
Vinco Valvulas SA
مشخصات:
Trunnion ball | Soft seated | Full bore | Bidirectional
Fire safe design | Antistatic design
Live loaded stem packing
Double encapsulated body sealing
ISO 5211 top works for automation
Anti blowout stem
Self relieving seats
Optional Features:
V-Port for flow control applications
NACE MR0175 / ISO 15156 compliance
Construction standards:
ASME B16.34 | ISO 17292
ISO 5211
NACE MR0175 / ISO 15156 materials (optional)
End connection standards:
RF Flange – ASME B16.5 Raised Face
Face to face standards:
ASME B16.10 for flanged
Pressure testing standards:
EN 12266-1 | ISO 5208 | API 598 Rate A
Body materials:
Standard: A216 WCB; A351 CF8M | Optional: A352 LCC; A351 CF8
Trim materials:
Ball – Standard: A351 CF8M | Optional: A479 316/L, others
Stem – Standard: A479 316/L | Optional: A564 S17400, others
Seat materials:
Standard: C-RPTFE | Optional: TFM 1600; PEEK
Bolting materials:
Standard: A193 Gr. B7, A193 Gr. B8M cl.2 | Optional: A193 Gr. B7M; A320 Gr. L7M (NACE MR0175 / ISO 15156 compliance), others
Product certification:
Fire tested acc. to API 607 and ISO 10497
ATEX 2014/34/EU
PED 2014/68/EU
توضیحات:
Type
ball
Operation
lever
Function
flow control
Body
flange, soft-seat, trunnion, stainless steel
Number of channels
2-way
Associated function
fire protection
Other characteristics
ISO, standard, ATEX
DN
Max.: 8 inMin.: 6 in
Pressure
300 psi, 750 psi
Temperature
Max.: 240 °C(464 °F)Min.: -46 °C(-51 °F)
