نام محصول:
دریچه
نام انگلیسی:

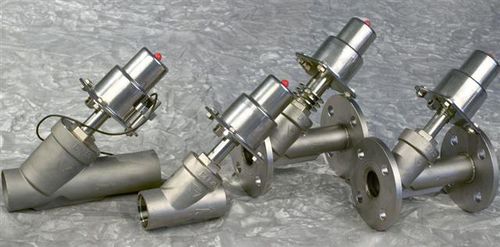

Plug valve 01FP
برند:
VALVOLE Hofmann by BONINO Engineering srl
مشخصات:
Body in microcast stainless steel CF8M/316
Actuator in stainless steel AISI 304
Normally-closed, normally-open, double-effect function
Seal in modified PTFE or PEEK
Packing in PTFE and FPM
Guided shaft for stable axial movement
Self-centering plug to ensure perfect positioning
Connections: BSPP – NPT – BW – SW – DIN/ANSI flanges
توضیحات:
Type
plug
Operation
pneumatic
Body
angle seat, ATEX, stainless steel, PTFE, PEEK
Applications
actuator, shaft
Other characteristics
ANSI, DIN, normally closed, ATEX
DN
Min.: 15 mm(0.591 in)Max.: 65 mm(2.559 in)
Pressure
Min.: 6 bar(87 psi)Max.: 8 bar(116 psi)
Temperature
Min.: -15 °C(5 °F)Max.: 225 °C(437 °F)
